standard Swivel castor with brake + elastic rubber tyre Ø100 x W35mm for 150kg Prod ID: 40253

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

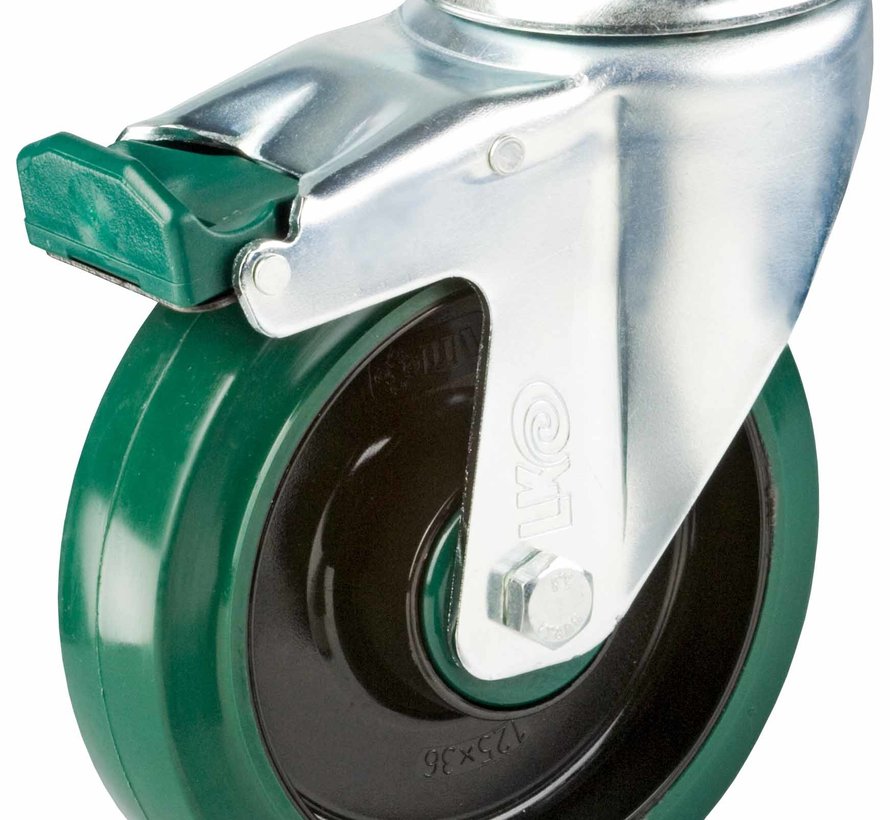

standard Swivel castor with brake with an overall height of 128 mm
Wheel diameter x width: 100 x 35 mm
Top plate with 4 mounting holes of 12,5 mm, mounting hole distance #$% mm and top plate outer dimensions: 93 mm
Wheel with ball bearing and elastic rubber tyre with hardness 70 ° shore A on polyamide
the double brake system, brakes the turning of the wheel and the swivel rotation.

Approved and tested load capacity
Dynamic 150 kg
Static 180 kg

Temperature range:
Continious operation: -25 | +80°C
Short (10 min) exposure: -30 | +110°C

Advantages of this Soft floor wheel Swivel castor with brake:
✓ force to start
✓ ride
✓ to surface when stationed

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS standard Swivel castor with brake + elastic rubber tyre Ø100 x W35mm for 150kg Prod ID: 40253

ID 40253: Castor overall height 128 mm | 4 mounting holes with distance #$% mm | Wheel with ball bearing and elastic rubber tyre with hardness 70 ° shore A | The double brake system, brakes the turning of the wheel and the swivel rotation. | Soft floor w
