standard wheel + elastic rubber tyre Ø100 x W35mm for 150kg Prod ID: 39845

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

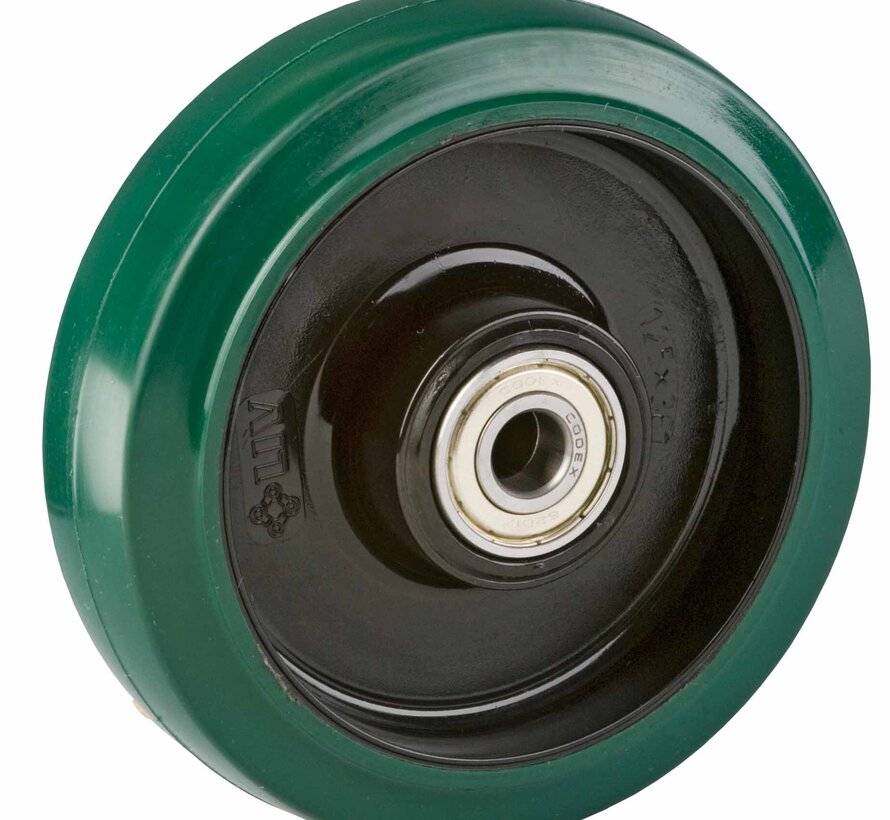

standard Wheel with ball bearing and elastic rubber tyre with hardness 70 ° shore A on polyamide
Wheel diameter x width: 100 x 35 mm
Axle hole: 12 mm
Hub length: 44 mm

Approved and tested load capacity
Dynamic 150 kg
Static 180 kg

Temperature range:
Continious operation: -25 | +80°C
Short (10 min) exposure: -30 | +110°C

Advantages of this Soft floor wheel wheel:
✓ force to start
✓ ride
✓ to surface when stationed

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS standard wheel + elastic rubber tyre Ø100 x W35mm for 150kg Prod ID: 39845

ID 39845:standard Wheel with ball bearing and elastic rubber tyre with hardness 70 ° shore A on polyamide | Axle hole: 12 mm | Hub length: 44 mm | Soft floor wheel, low force to start, smooth ride, gentle to surface when stationed
