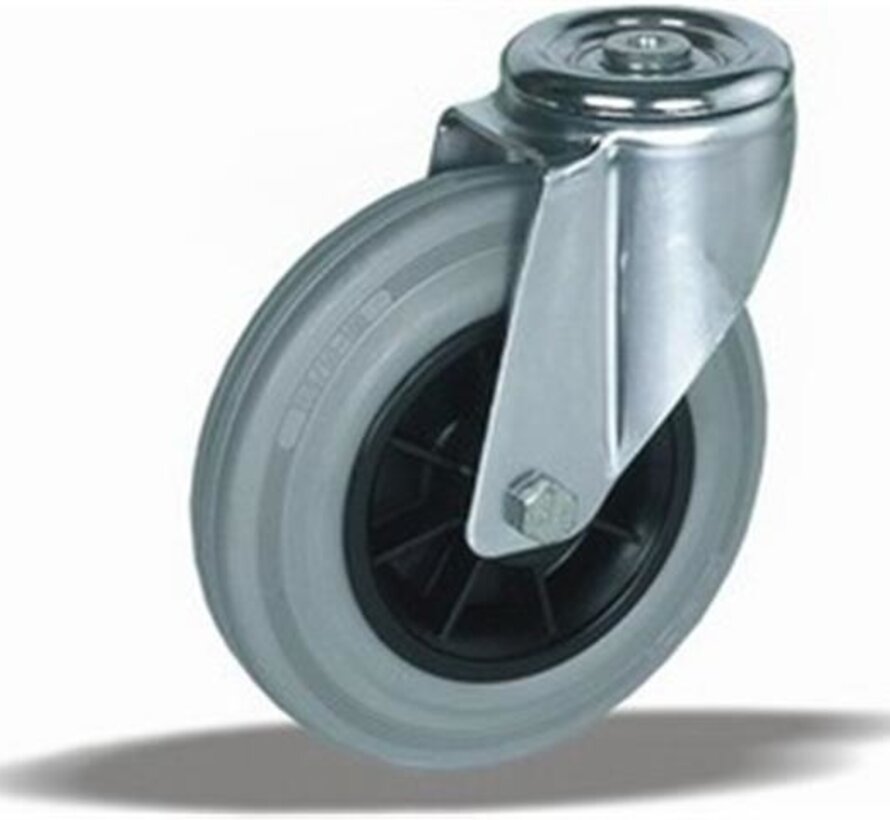

standard Swivel castor + grey rubber tyre Ø200 x W50mm for 230kg Prod ID: 39583

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

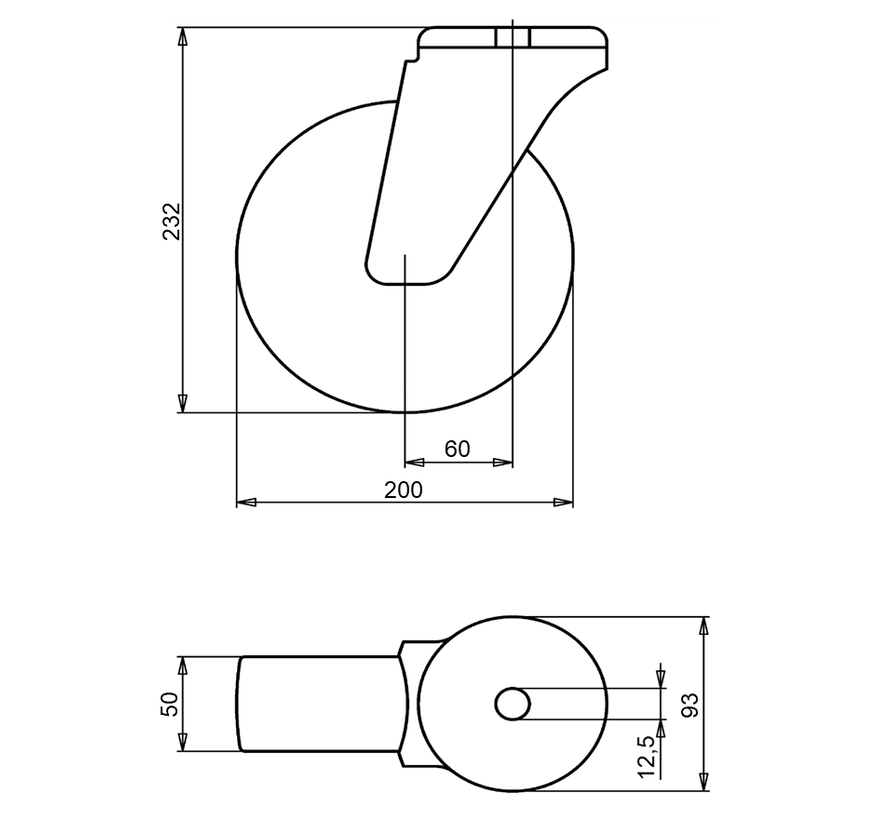

standard Swivel castor with an overall height of 232 mm
Wheel diameter x width: 200 x 50 mm
Top plate with 4 mounting holes of 12,5 mm, mounting hole distance #$% mm and top plate outer dimensions: 93 mm
Wheel with plain bearing and grey rubber tyre with hardness 83 ° Shore A on polypropylene.

Approved and tested load capacity
Dynamic 230 kg
Static 280 kg

Temperature range:
Continious operation: -20 | +70°C
Short (10 min) exposure: -30 | +80°C

Advantages of this Elegant trip Swivel castor:
✓ rubber is non-marking and leaves no marks on the floor
✓ reduces the transmission of both vibration and noise
✓ and outdoor use

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS standard Swivel castor + grey rubber tyre Ø200 x W50mm for 230kg Prod ID: 39583

ID 39583: Castor overall height 232 mm | 4 mounting holes with distance #$% mm | Wheel with plain bearing and grey rubber tyre with hardness 83 ° Shore A | Elegant trip, Grey rubber is non-marking and leaves no marks on the floor, rubber reduces the trans
