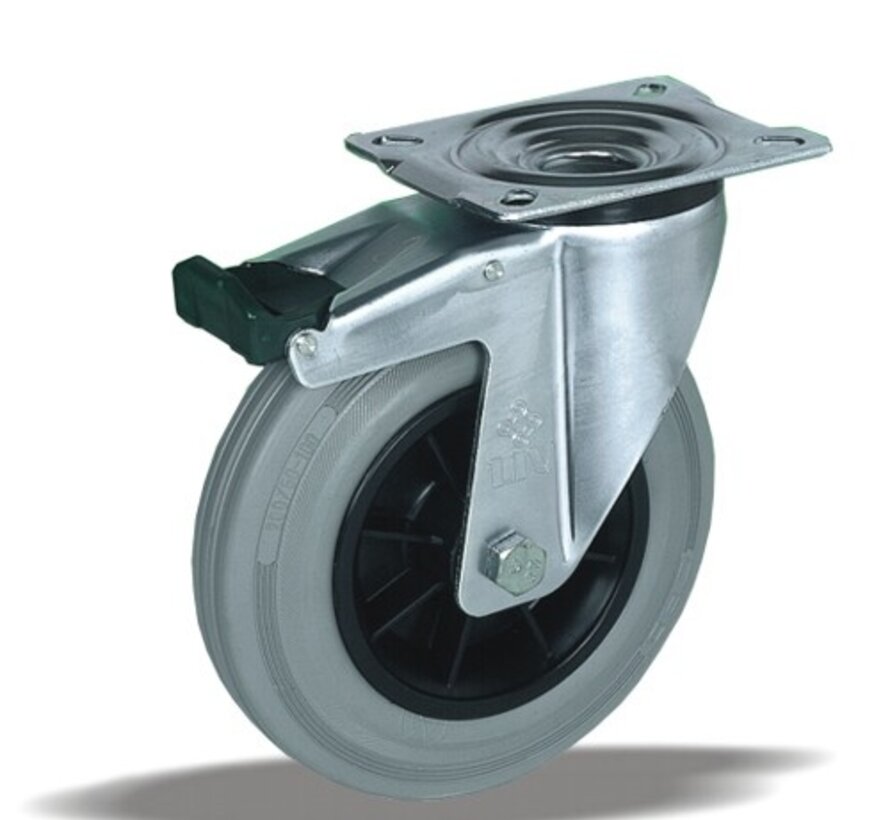

standard Swivel castor with brake with an overall height of 210 mm
Wheel diameter x width: 180 x 50 mm
Top plate with 4 mounting holes of 11 mm, mounting hole distance 105x110 mm and top plate outer dimensions: 135x110 mm
Wheel with plain bearing and grey rubber tyre with hardness 83 ° Shore A on polypropylene
the double brake system, brakes the turning of the wheel and the swivel rotation.
Approved and tested load capacity
Dynamic 200 kg
Static 250 kg
Temperature range:
Continious operation: -20 | +70°C
Short (10 min) exposure: -30 | +80°C
Advantages of this Elegant trip Swivel castor with brake:
✓ rubber is non-marking and leaves no marks on the floor
✓ reduces the transmission of both vibration and noise
✓ and outdoor use
standard Swivel castor with brake + grey rubber tyre Ø180 x W50mm for 200kg Prod ID: 39445
- Product description
- Deep draw press forming and surface treatment of OE steel parts is our expertise
Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise
Deep draw press forming and surface treatment of OE steel parts is our expertise
Product information
- Article code 2-940 ISO
- SKU 39445
- EAN 3838461394454
