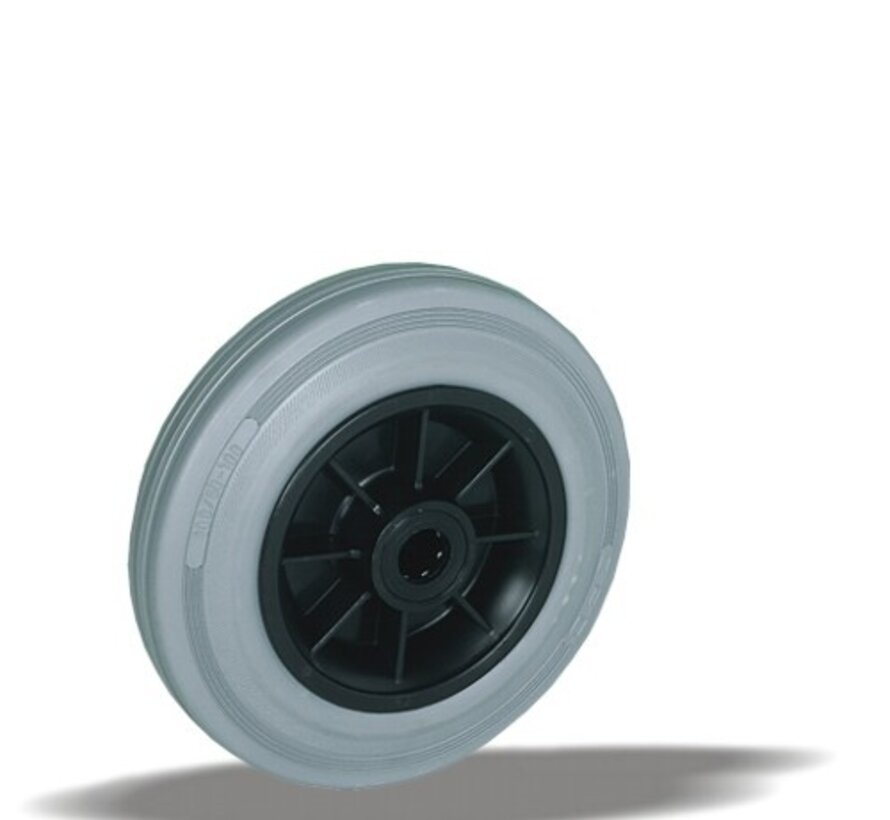

Wheel 80 mm, grey rubber, plain bearing, axle hole 12 mm, 65 kg, product code 38863
Wheel, 80 mm wheel diameter, grey rubber tread, running on plain bearing. Rated load is 65 kg dynamic, 80 kg static, with a 12 mm axle hole.
- Looking for a castor or wheel for your application? Contact us.
- Ask us for CAD models in STEP and IGES formats
- Short delivery times for large quantities of castors
- Pressing steel OEM parts is our expertise
You are in our product catalogue. This opens livsystems.eu in a new tab, where we show our factory and the background of the company.
Product description
| Type | Wheel |
|---|---|
| Wheel diameter | 80 mm |
| Wheel width | 30 mm |
| Tread | grey rubber tread, 83 Shore A |
| Tread colour | grey |
| Wheel centre | polypropylene |
| Bearing | plain bearing |
| Load capacity, dynamic | 65 kg |
| Load capacity, static | 80 kg |
| Axle hole | 12 mm |
| Weight | 0.15 kg |
| Temperature, continuous | -20 to +70 °C |
| Temperature, short exposure (max. 10 min) | -30 to +80 °C |
| Fitting | Wheel hub |
| Hub length | 44 mm |
Tread free of PAH (EU directive 2005/69/EC). Tested to EN 12532.
Properties and use
The grey rubber does not leave marks on the floor. The tyre damps vibration and noise, and the wheel works indoors and outdoors. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).
Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 1 to 2 working days.
Specifications from the LIV product database, October 2026.
Product information
| Product code | 38863 |
|---|---|
| Drawing number | 2-942 ISO |
| EAN | 3838461388637 |
Made by LIV
About LIV as a manufacturer of castors and wheels (opens in a new tab)
Need a version to your drawing? Project inquiry (opens in a new tab)
