furniture Swivel castor with brake + polyethylene tread Ø75 x W25mm for 75kg Prod ID: 38734

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

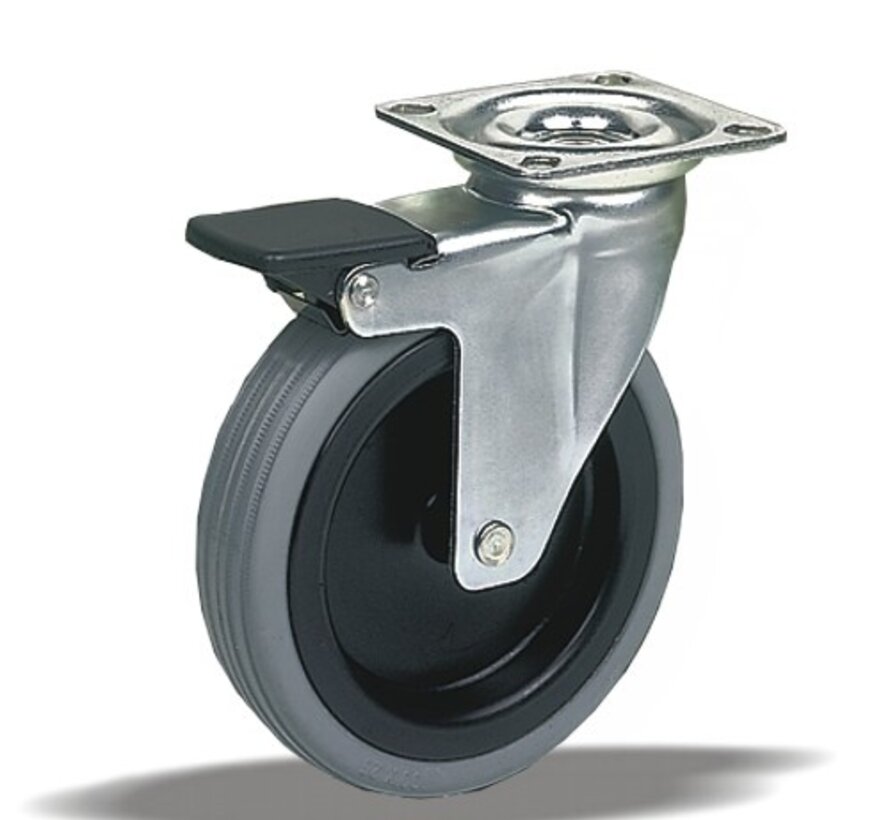

furniture Swivel castor with brake with an overall height of 96 mm
Wheel diameter x width: 75 x 25 mm
Top plate with 4 mounting holes of 6,5 mm, mounting hole distance 46x46 mm and top plate outer dimensions: 60x60 mm
Wheel with plain bearing and polyethylene tread with hardness 92 ° Shore A on polypropylene
the double brake system, brakes the turning of the wheel and the swivel rotation.

Approved and tested load capacity:
Dynamic: 75 kg
Static: 90 kg

Temperature range:
Continious operation: -20 | +60°C
Short (10 min) exposure: -30 | +80°C

Advantages of this Invisible foundation Swivel castor with brake:
✓ deformation if rarely moved
✓ markings on the floor
✓ to turn

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS furniture Swivel castor with brake + polyethylene tread Ø75 x W25mm for 75kg Prod ID: 38734

ID 38734: Castor overall height 96 mm | 4 mounting holes with distance 46x46 mm | Wheel with plain bearing and polyethylene tread with hardness 92 ° Shore A | The double brake system, brakes the turning of the wheel and the swivel rotation. | Invisible fo
