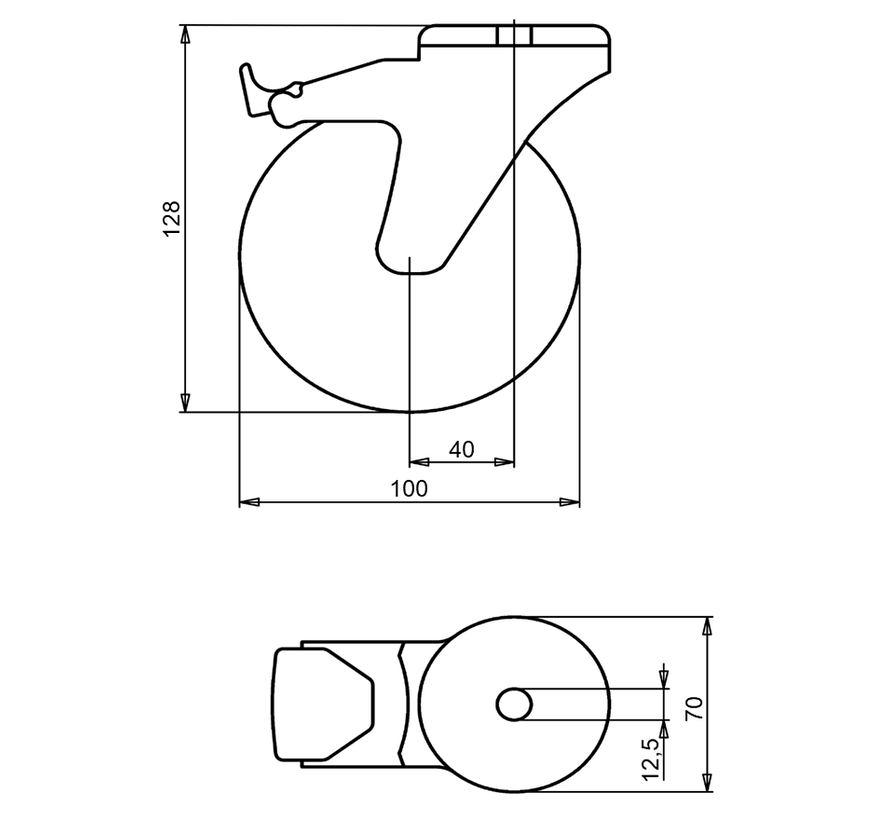

standard Swivel castor with brake with an overall height of 128 mm
Wheel diameter x width: 100 x 35 mm
Top plate with 4 mounting holes of 12,5 mm, mounting hole distance #$% mm and top plate outer dimensions: 70 mm
Wheel with plain bearing and solid polypropylene wheel with hardness 60±5 Shore D
the double brake system, brakes the turning of the wheel and the swivel rotation.
Approved and tested load capacity
Dynamic 125 kg
Static 150 kg
Temperature range:
Continious operation: -20 | +60°C
Short (10 min) exposure: /°C
Advantages of this Long floor drive Swivel castor with brake:
✓ acidic environment
✓ wear off
✓ rolling resistance
standard Swivel castor with brake + solid polypropylene wheel Ø100 x W35mm for 125kg Prod ID: 34593
- Product description
- Deep draw press forming and surface treatment of OE steel parts is our expertise
Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise
Deep draw press forming and surface treatment of OE steel parts is our expertise
Product information
- Article code 2-794 L12
- SKU 34593
- EAN 3838461345937
