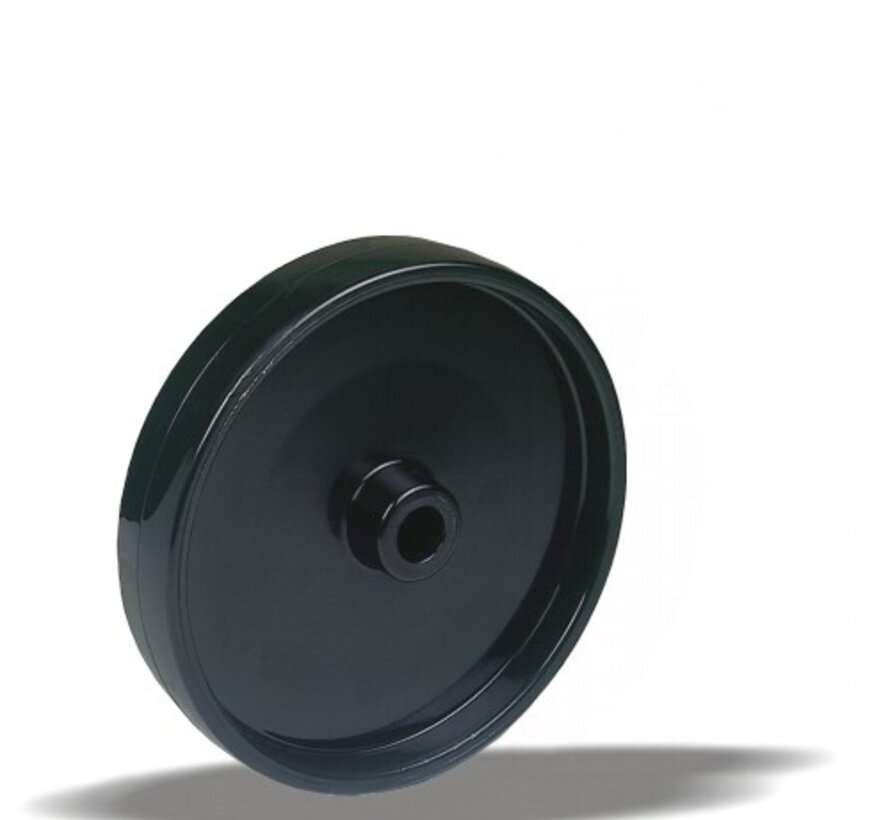

| Type | Wheel |
|---|---|
| Wheel diameter | 100 mm |
| Wheel width | 35 mm |
| Tread | solid polypropylene wheel, 60±5 Shore D |
| Wheel centre | polypropylene |
| Bearing | ball bearing |
| Load capacity, dynamic | 125 kg |
| Load capacity, static | 150 kg |
| Axle hole | 8.5 mm |
| Weight | 0.17 kg |
| Temperature, continuous | -20 to +60 °C |
Properties and use
Polypropylene resists acids, wears slowly and rolls with low resistance. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).
Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 24 hours.
Specifications from the LIV product database, October 2026.
