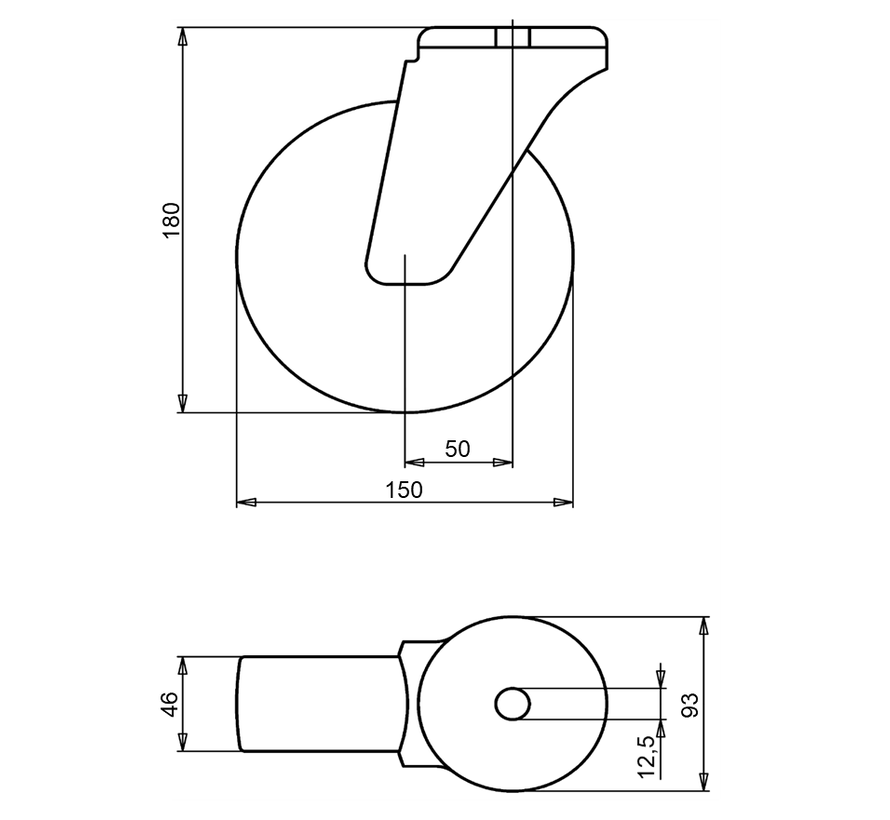

standard Swivel castor with an overall height of 180 mm
Wheel diameter x width: 150 x 46 mm
Top plate with 4 mounting holes of 12,5 mm, mounting hole distance #$% mm and top plate outer dimensions: 93 mm
Wheel with roller bearing and solid polypropylene wheel with hardness 60±5 Shore D.
Approved and tested load capacity
Dynamic 250 kg
Static 310 kg
Temperature range:
Continious operation: -20 | +60°C
Short (10 min) exposure: /°C
Advantages of this Long floor drive Swivel castor:
✓ acidic environment
✓ wear off
✓ rolling resistance

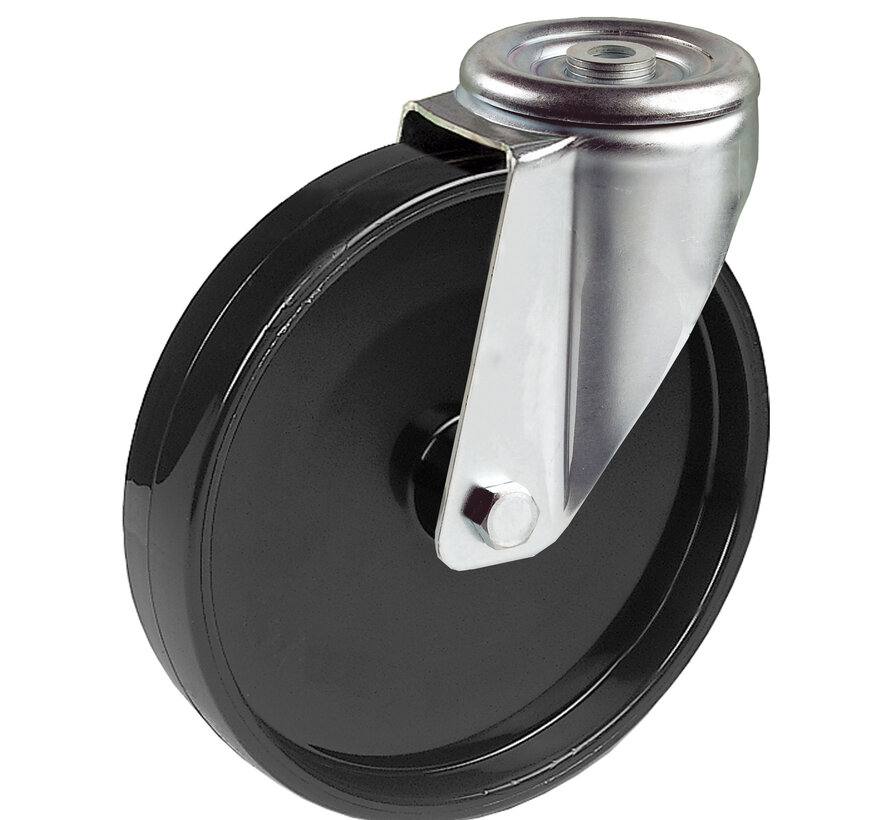

standard Swivel castor + solid polypropylene wheel Ø150 x W46mm for 250kg Prod ID: 34293
- Product description
- Deep draw press forming and surface treatment of OE steel parts is our expertise
Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise
Deep draw press forming and surface treatment of OE steel parts is our expertise
Product information
- Article code 2-758 L12
- SKU 34293
- EAN 3838461342936
Specifications
