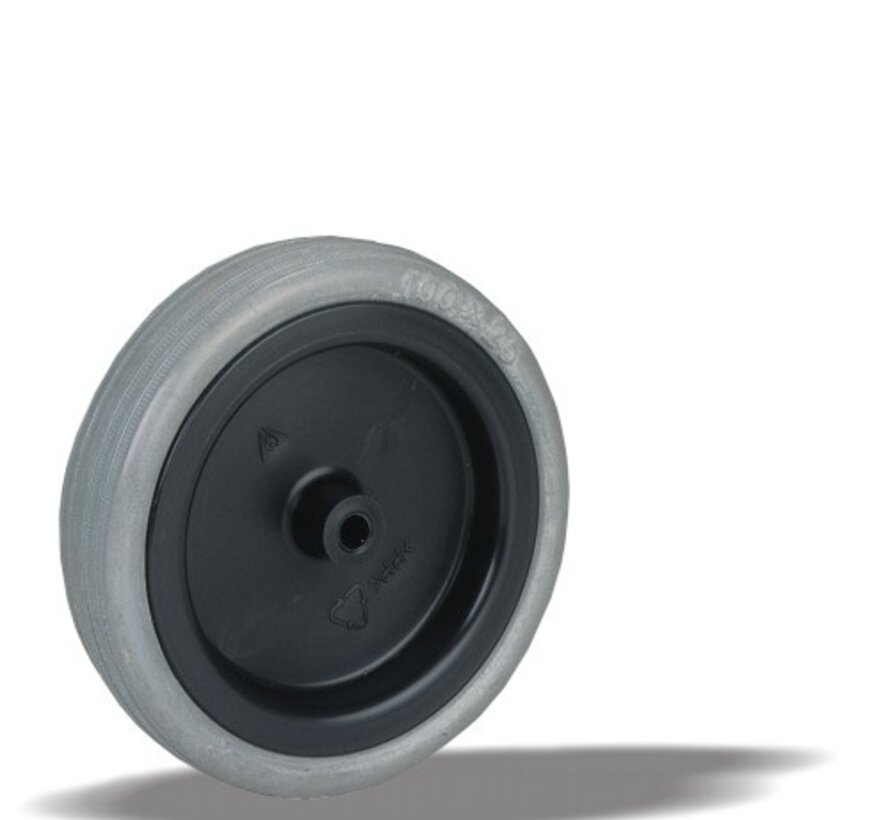

| Type | Furniture wheel |
|---|---|
| Wheel diameter | 50 mm |
| Wheel width | 20 mm |
| Tread | rubber tread, 83 Shore A |
| Tread colour | grey |
| Wheel centre | polypropylene |
| Bearing | plain bearing |
| Load capacity, dynamic | 40 kg |
| Load capacity, static | 50 kg |
| Axle hole | 6 mm |
| Weight | 0.05 kg |
| Temperature, continuous | -20 to +70 °C |
| Temperature, short exposure (max. 10 min) | -30 to +80 °C |
Tread free of PAH (EU directive 2005/69/EC).
Properties and use
Gentle on the floor surface and visually discreet. Light. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).
Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 24 hours.
Specifications from the LIV product database, October 2026.
