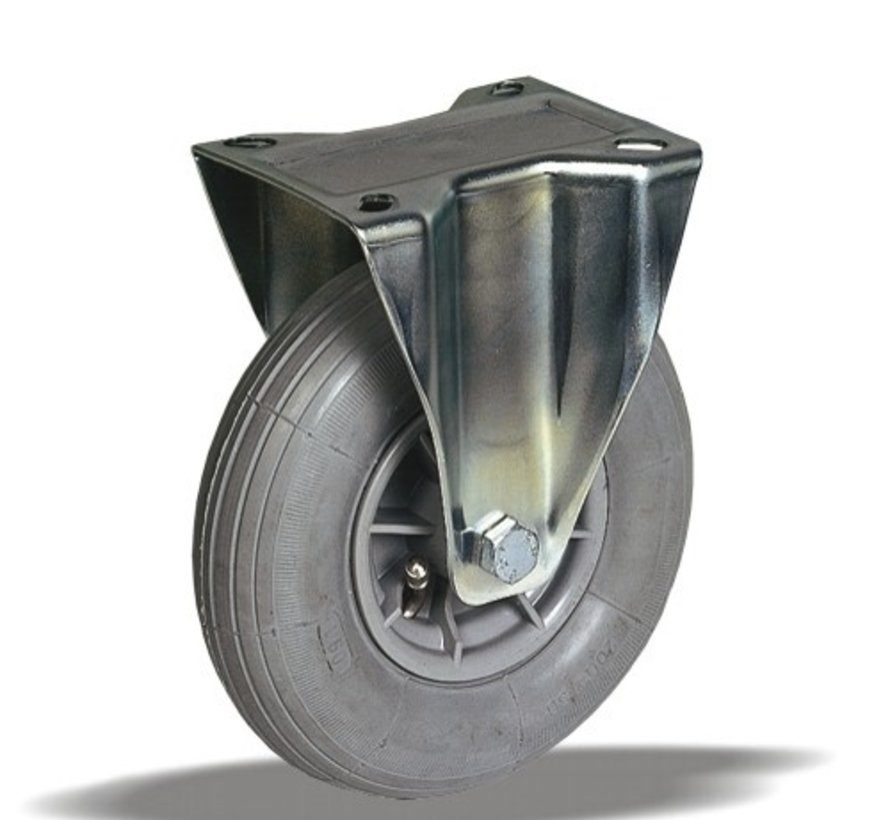

for rough floors Fixed castor + grey pneumatic Ø200 x W50mm for 60kg Prod ID: 32703

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

for rough floors Fixed castor with an overall height of 232 mm
Wheel diameter x width: 200 x 50 mm
Top plate with 4 mounting holes of 11 mm, mounting hole distance 105x80 mm and top plate outer dimensions: 135x110 mm
Wheel with plain bearing and grey pneumatic with hardness 83 ° Shore A on polypropylene.

Approved and tested load capacity
Dynamic 60 kg
Static 70 kg

Temperature range:
Continious operation: -5 | +60°C
Short (10 min) exposure: -5 | +60°C

Advantages of this Light run Fixed castor:
✓ marks left
✓ for uneven terrain
✓ amortisation

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS for rough floors Fixed castor + grey pneumatic Ø200 x W50mm for 60kg Prod ID: 32703

ID 32703: Castor overall height 232 mm | 4 mounting holes with distance 105x80 mm | Wheel with plain bearing and grey pneumatic with hardness 83 ° Shore A | Light run, no marks left, appropriate for uneven terrain, good amortisation
