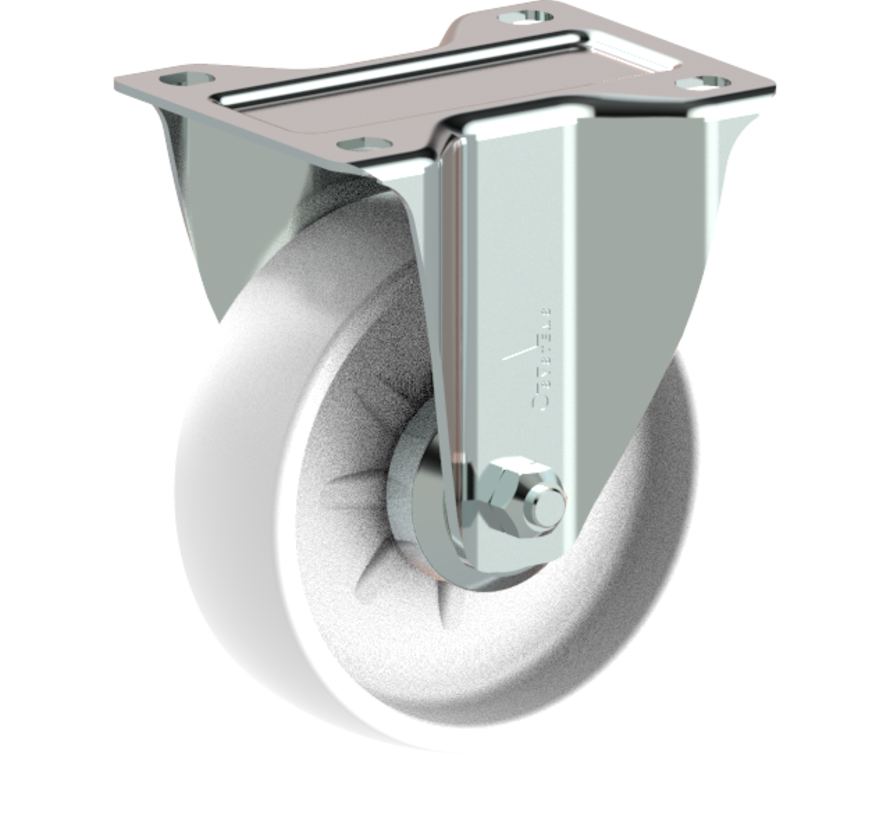

standard Fixed castor + solid polypropylene wheel Ø108 x W36mm for 150kg Prod ID: 31813

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

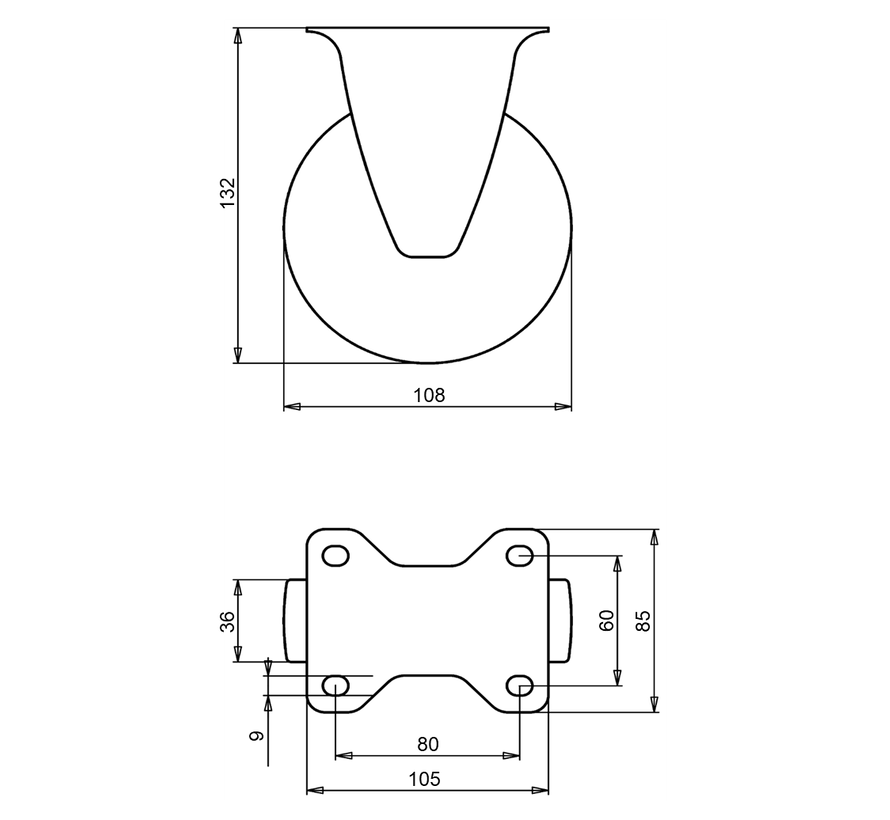

standard Fixed castor with an overall height of 132 mm
Wheel diameter x width: 108 x 36 mm
Top plate with 4 mounting holes of 9 mm, mounting hole distance 80x60 mm and top plate outer dimensions: 105x85 mm
Wheel with roller bearing and solid polypropylene wheel with hardness 60±5 Shore D.

Approved and tested load capacity
Dynamic 150 kg
Static 180 kg

Temperature range:
Continious operation: -20 | +60°C
Short (10 min) exposure: /°C

Advantages of this Long floor drive Fixed castor:
✓ acidic environment
✓ wear off
✓ rolling resistance

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS standard Fixed castor + solid polypropylene wheel Ø108 x W36mm for 150kg Prod ID: 31813

ID 31813: Castor overall height 132 mm | 4 mounting holes with distance 80x60 mm | Wheel with roller bearing and solid polypropylene wheel with hardness 60±5 Shore D | Long floor drive, for acidic environment, low wear off, low rolling resistance
