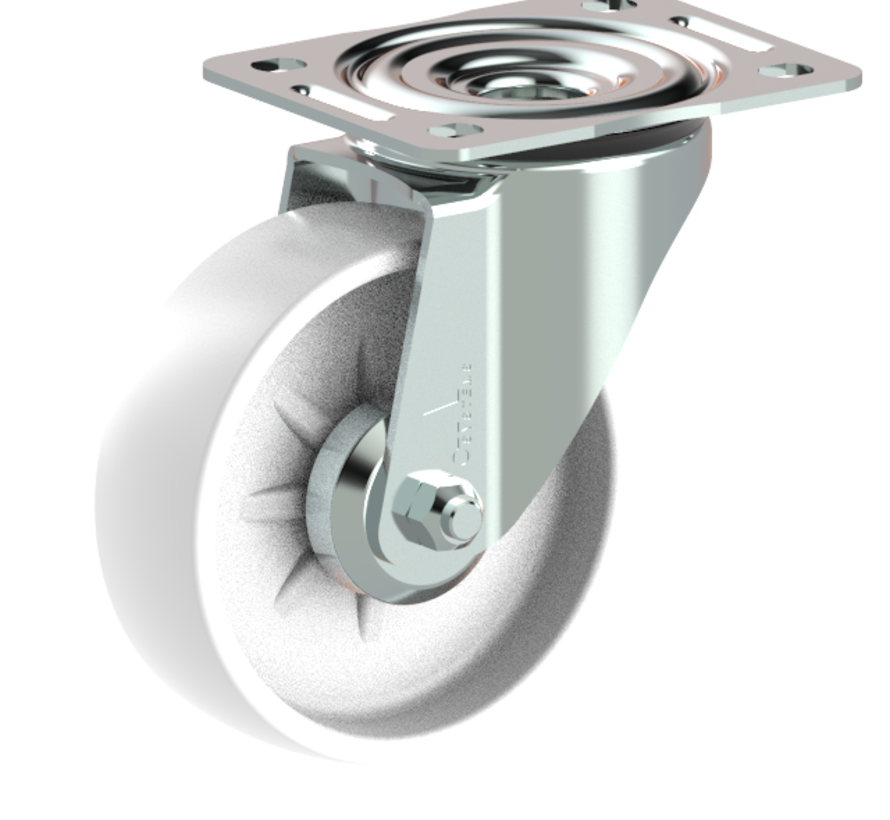

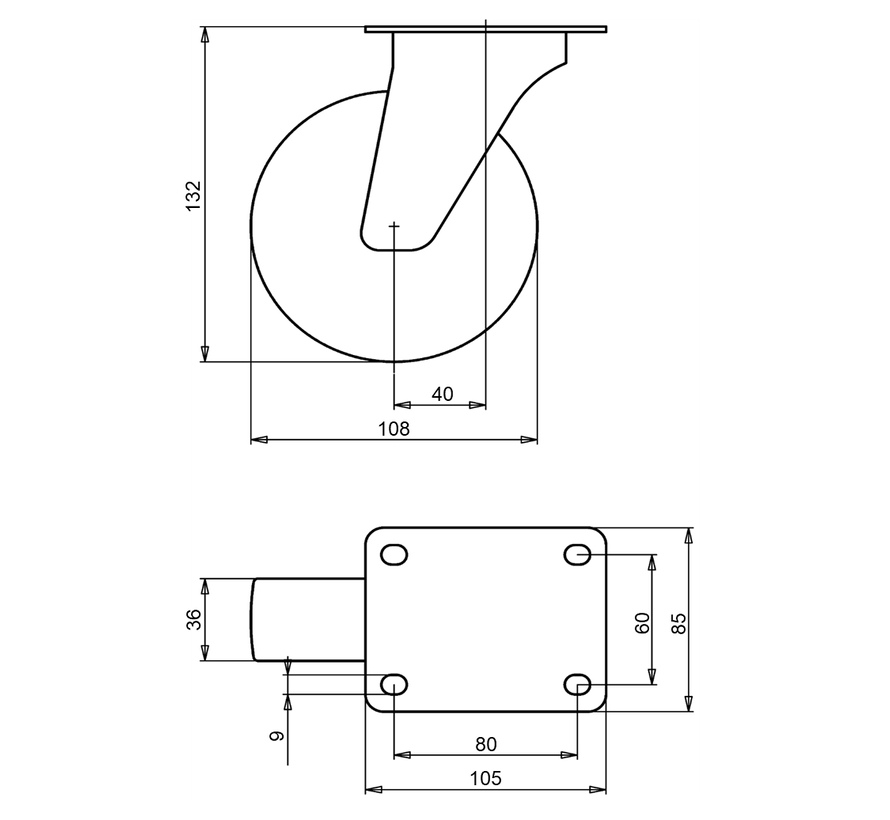

standard Swivel castor with an overall height of 132 mm
Wheel diameter x width: 108 x 36 mm
Top plate with 4 mounting holes of 9 mm, mounting hole distance 80x60 mm and top plate outer dimensions: 105x85 mm
Wheel with roller bearing and solid polypropylene wheel with hardness 60±5 Shore D.
Approved and tested load capacity
Dynamic 150 kg
Static 180 kg
Temperature range:
Continious operation: -20 | +60°C
Short (10 min) exposure: /°C
Advantages of this Long floor drive Swivel castor:
✓ acidic environment
✓ wear off
✓ rolling resistance
standard Swivel castor + solid polypropylene wheel Ø108 x W36mm for 150kg Prod ID: 31805
- Product description
- Deep draw press forming and surface treatment of OE steel parts is our expertise
Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise
Deep draw press forming and surface treatment of OE steel parts is our expertise
Product information
- Article code 2-715 ISO
- SKU 31805
- EAN 3838461318054
Specifications
