Swivel transport castor with total lock 180 mm, black rubber, roller bearing, plate 135x110 mm, 200 kg, product code 31224

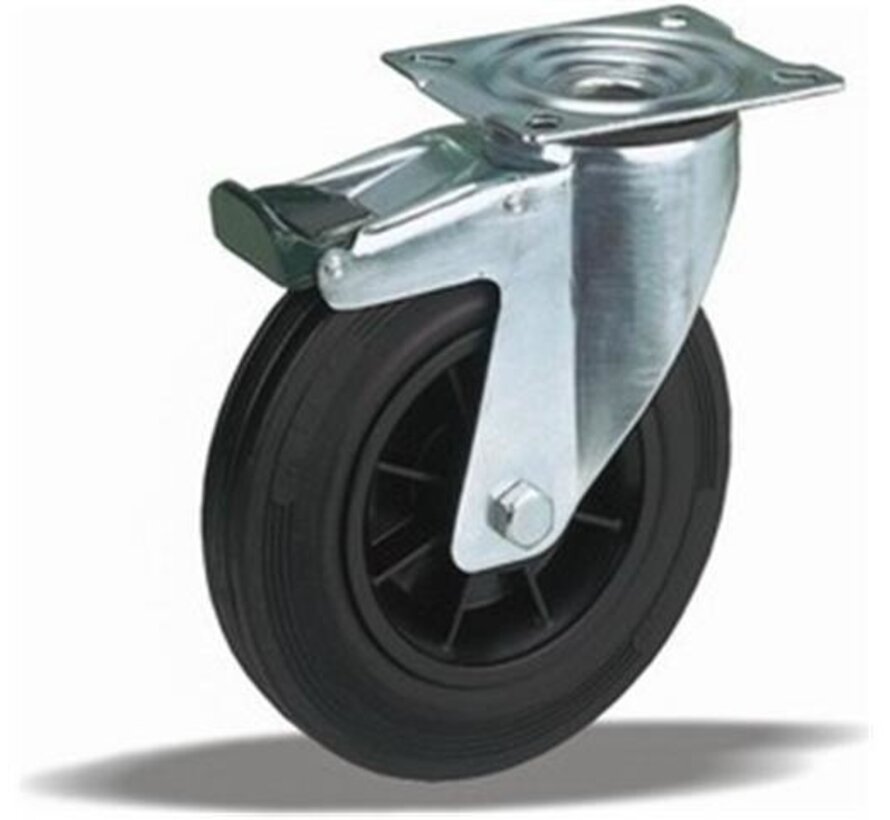

Swivel transport castor with total lock with a 180 mm wheel, black rubber tread, on roller bearing. It carries 200 kg dynamic and 250 kg static, mounted on a 135x110 mm top plate with hole distance 105x80 mm. The total lock brakes the rotation of the wheel and the swivel head.

  • Looking for a castor or wheel for your application? Contact us.
  • Ask us for CAD models in STEP and IGES formats
  • Short delivery times for large quantities of castors
  • Pressing steel OEM parts is our expertise
Download PDF See our factory (opens in a new tab)

You are in our product catalogue. This opens livsystems.eu in a new tab, where we show our factory and the background of the company.

Product description

TypeSwivel transport castor with total lock
Wheel diameter180 mm
Wheel width50 mm
Treadblack rubber tread, 80 Shore A
Tread colourblack
Wheel centrepolypropylene
Bearingroller bearing
Load capacity, dynamic200 kg
Load capacity, static250 kg

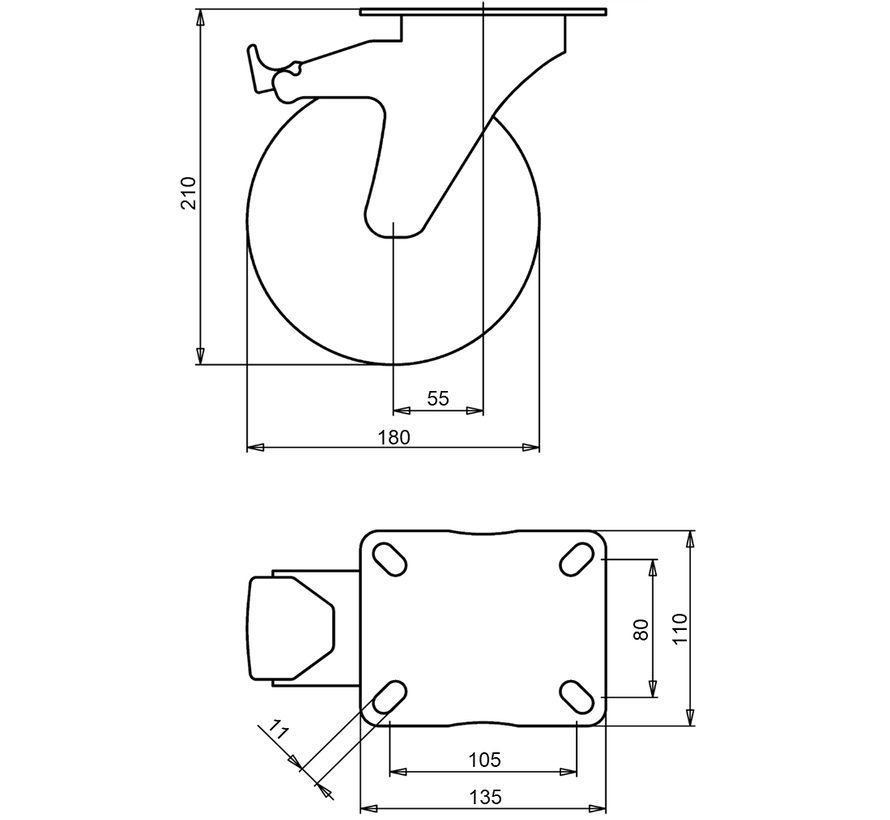

Top plate135x110 mm
Hole distance105x80 mm
Fixing hole diameter11 mm
Overall height210 mm
Offset55 mm
Braketotal lock (locks wheel and swivel)
Weight2.8 kg
Temperature, continuous-20 to +70 °C
Temperature, short exposure (max. 10 min)-30 to +80 °C

Fork zinc electroplated and Cr(VI)-free. Tread free of PAH (EU directive 2005/69/EC). Tested to EN 12532.

Properties and use

Suited to wet floors and low obstacles. The rubber tyre damps vibration and noise. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).

Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 1 to 2 working days.

Specifications from the LIV product database, October 2026.
