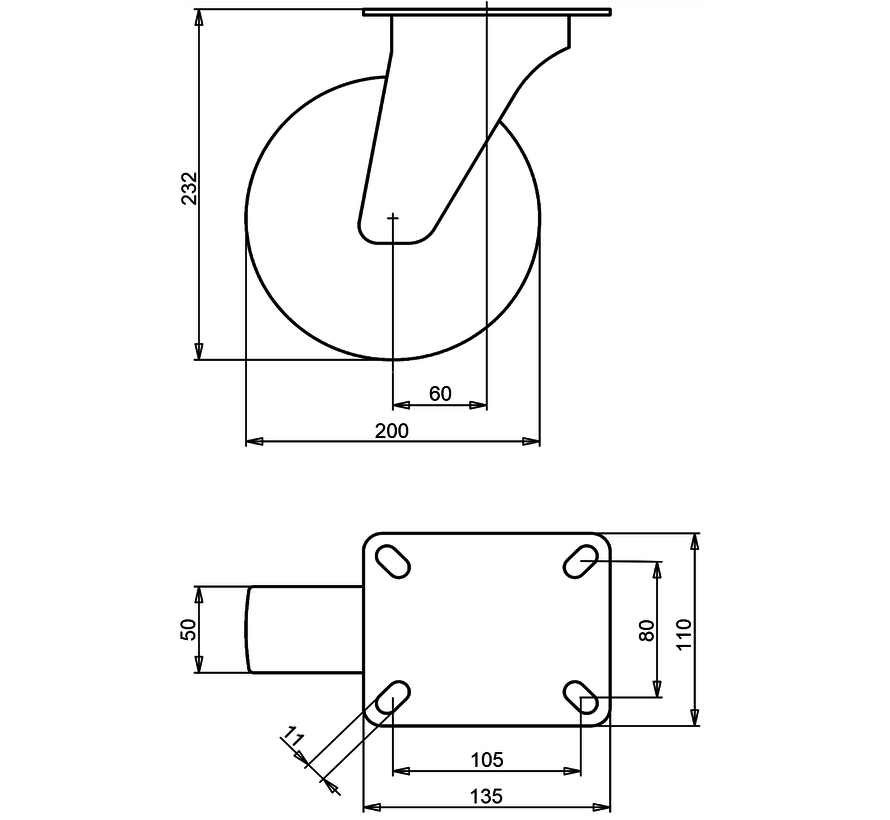

standard Swivel transport castor with an overall height of 232 mm
Wheel diameter x width: 200 x 50 mm
Top plate with 4 mounting holes of 11 mm, mounting hole distance 105x80 mm and top plate outer dimensions: 135x110 mm
Wheel with roller bearing and black rubber tyre with hardness 80 ° Shore A on polypropylene.
Approved and tested load capacity
Dynamic 230 kg
Static 280 kg
Temperature range:
Continious operation: -20 | +70°C
Short (10 min) exposure: -30 | +80°C
Advantages of this Smooth drive wheel Swivel transport castor:
✓ wet floor
✓ reduces the transmission of both vibration and noise
✓ with low obstacles

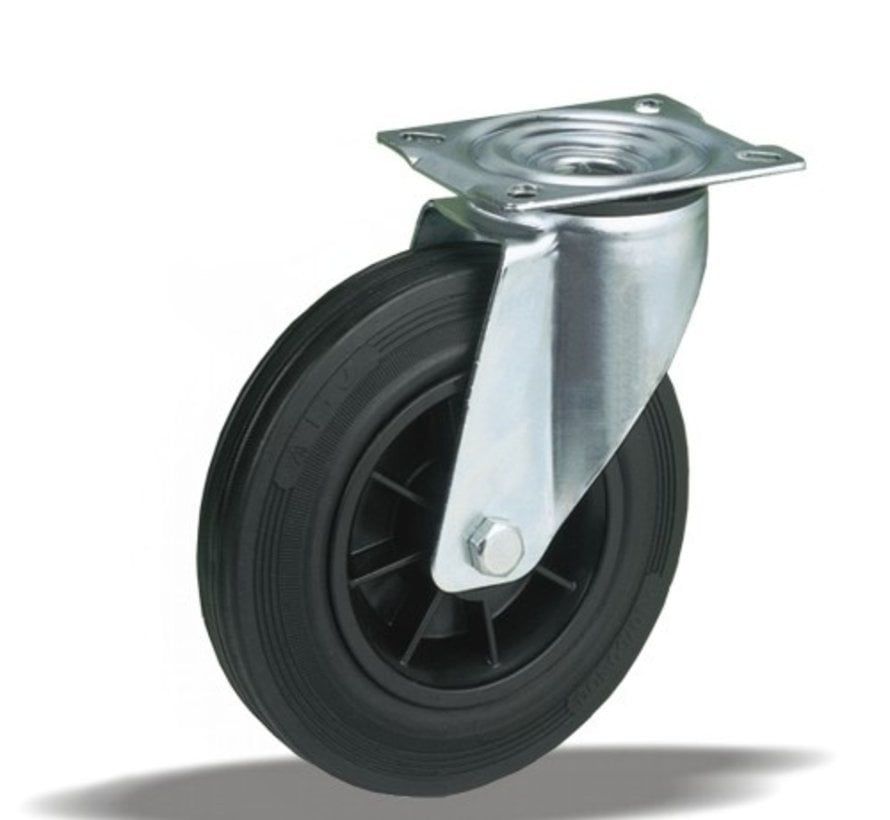

standard Swivel transport castor + black rubber tyre Ø200 x W50mm for 230kg Prod ID: 31165
- Product description
- Deep draw press forming and surface treatment of OE steel parts is our expertise
Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise
Deep draw press forming and surface treatment of OE steel parts is our expertise
Product information
- Article code 2-920 ISO
- SKU 31165
- EAN 3838461311659
Specifications
