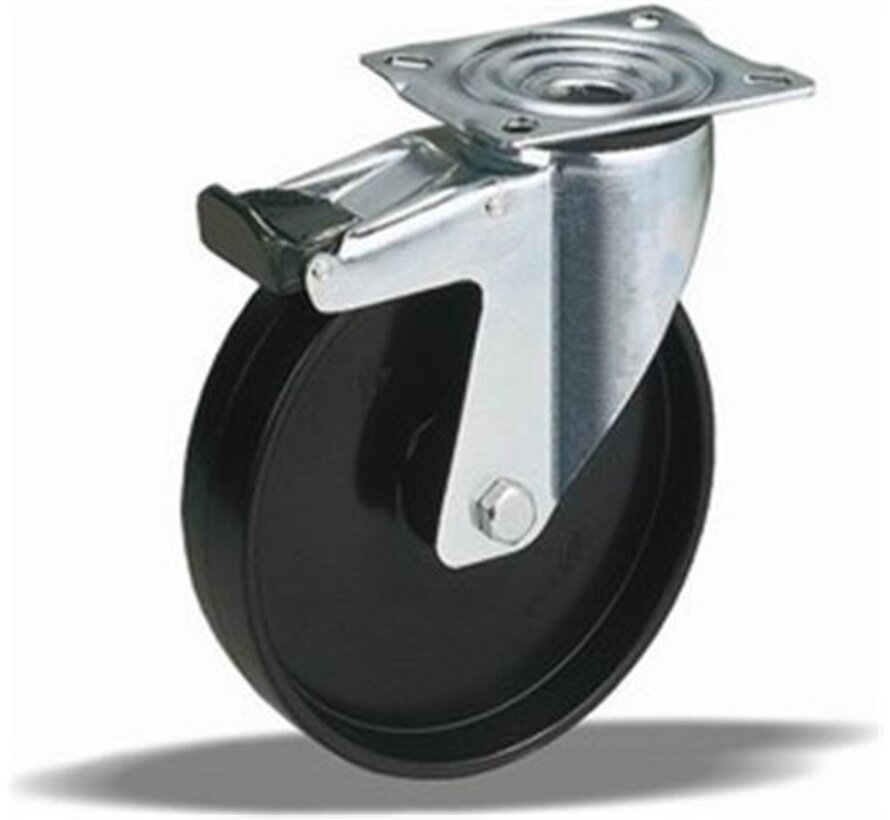

| Type | Swivel castor with total brake |
|---|---|
| Wheel diameter | 100 mm |
| Wheel width | 35 mm |
| Tread | solid polypropylene wheel, 60±5 Shore D |
| Wheel centre | polypropylene |
| Bearing | roller bearing |
| Load capacity, dynamic | 125 kg |
| Load capacity, static | 150 kg |
| Top plate | 105x85 mm |
| Hole distance | 80x60 mm |
| Fixing hole diameter | 9 mm |
| Overall height | 128 mm |
| Offset | 40 mm |
| Brake | total brake (locks wheel and swivel) |
| Weight | 0.65 kg |
| Temperature, continuous | -20 to +60 °C |
Fork zinc electroplated and Cr(VI)-free.
Properties and use
Polypropylene resists acids, wears slowly and rolls with low resistance. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).
Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 24 hours.
Specifications from the LIV product database, October 2026.
