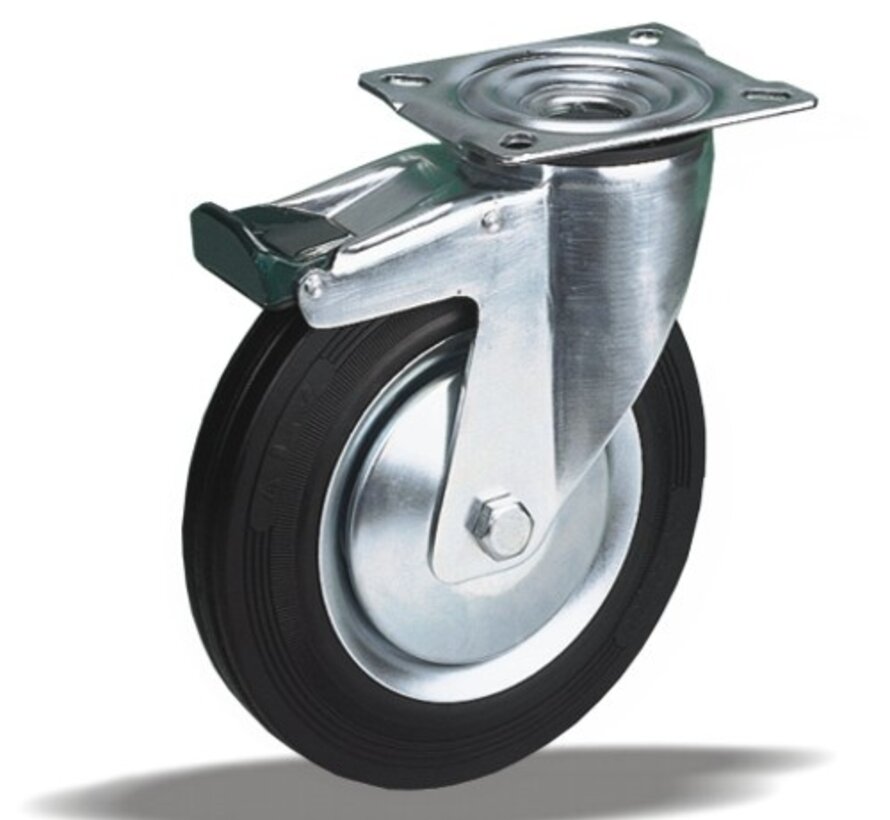

| Type | Swivel transport castor with total brake |
|---|---|
| Wheel diameter | 180 mm |
| Wheel width | 50 mm |
| Tread | black rubber tread, 80 Shore A |
| Tread colour | black |
| Wheel centre | steel, zinc electroplated, Cr(VI)-free |
| Bearing | plain bearing |
| Load capacity, dynamic | 200 kg |
| Load capacity, static | 250 kg |
| Top plate | 135x110 mm |
| Hole distance | 105x80 mm |
| Fixing hole diameter | 11 mm |
| Overall height | 210 mm |
| Offset | 55 mm |
| Brake | total brake (locks wheel and swivel) |
| Weight | 3.3 kg |
| Temperature, continuous | -20 to +70 °C |
| Temperature, short exposure (max. 10 min) | -30 to +80 °C |
Fork zinc electroplated and Cr(VI)-free. Tread free of PAH (EU directive 2005/69/EC). Tested to EN 12532.
Properties and use
Steers easily and copes with uneven floors and obstacles. Steel rim and rubber tyre make a strong wheel. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).
Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 24 hours.
Specifications from the LIV product database, October 2026.
