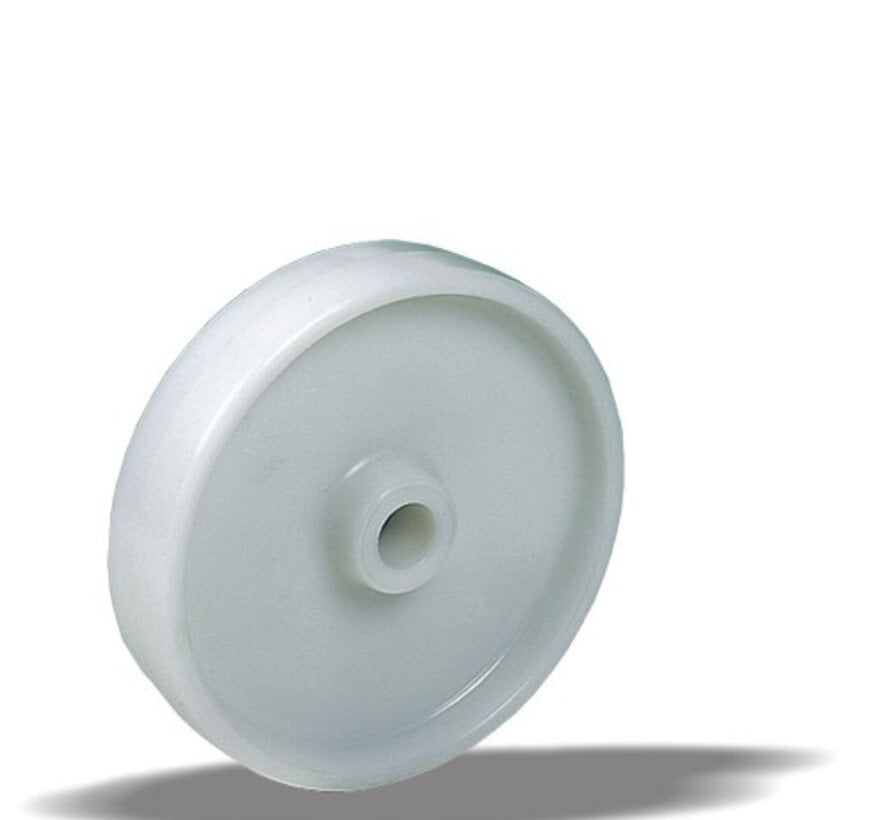

heavy duty wheel + solid polyamide wheel Ø200 x W44mm for 500kg Prod ID: 23706

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

heavy duty Wheel with plain bearing and solid polyamide wheel with hardness 70±5 Shore D
Wheel diameter x width: 200 x 44 mm
Axle hole: 25 mm
Hub length: 59 mm

Approved and tested load capacity
Dynamic 500 kg
Static 620 kg

Temperature range:
Continious operation: -25 | +80°C
Short (10 min) exposure: -30 | +110°C

Advantages of this High load easy start wheel:
✓ wearout
✓ effort to keep rolling
✓ to turn

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS heavy duty wheel + solid polyamide wheel Ø200 x W44mm for 500kg Prod ID: 23706

ID 23706:heavy duty Wheel with plain bearing and solid polyamide wheel with hardness 70±5 Shore D | Axle hole: 25 mm | Hub length: 59 mm | High load easy start, low wearout, little effort to keep rolling, easy to turn
