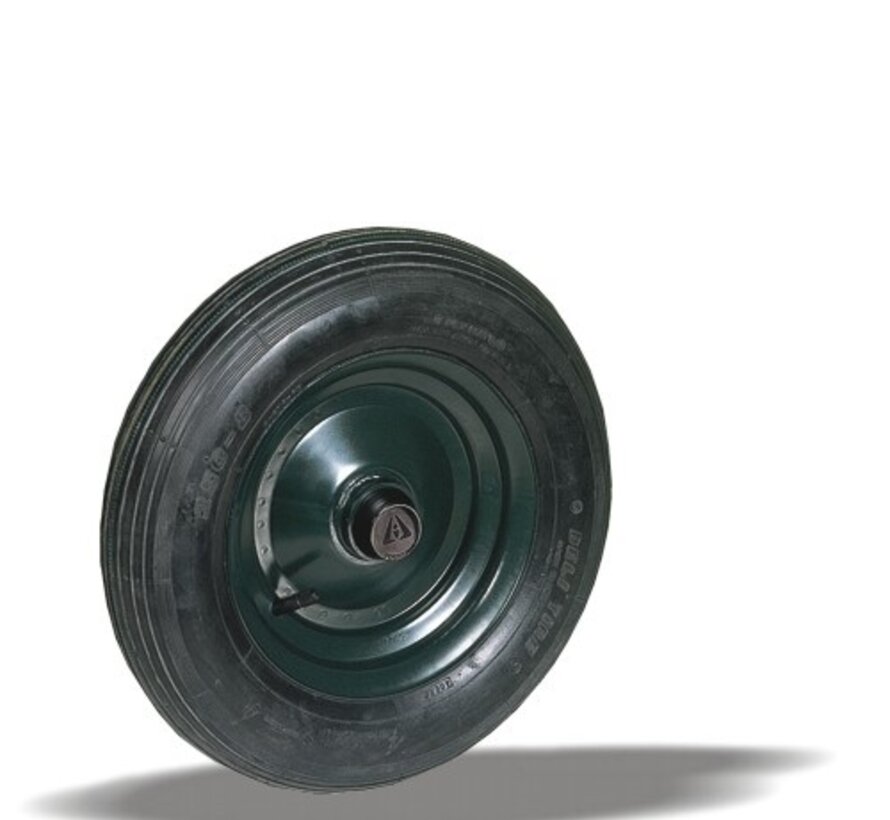

for rough floors wheel + pneumatic Ø400 x W100mm for 150kg Prod ID: 22896

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

for rough floors Wheel with ball bearing and pneumatic with hardness 80 ° Shore A on steel rim with electrogalvanization zinc plating anti-corrosion protection Cr6-free
Wheel diameter x width: 400 x 100 mm
Axle hole: 25 mm
Hub length: 56 mm

Approved and tested load capacity
Dynamic 150 kg
Static 180 kg

Temperature range:
Continious operation: -5 | +60°C
Short (10 min) exposure: -5 | +60°C

Advantages of this Macadam ride wheel:
✓ rolls over obstacles
✓ ground adapting
✓ to manipulate

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS for rough floors wheel + pneumatic Ø400 x W100mm for 150kg Prod ID: 22896

ID 22896:for rough floors Wheel with ball bearing and pneumatic with hardness 80 ° Shore A on steel rim with electrogalvanization zinc plating anti-corrosion protection Cr6-free | Axle hole: 25 mm | Hub length: 56 mm | Macadam ride, easily rolls over obs
