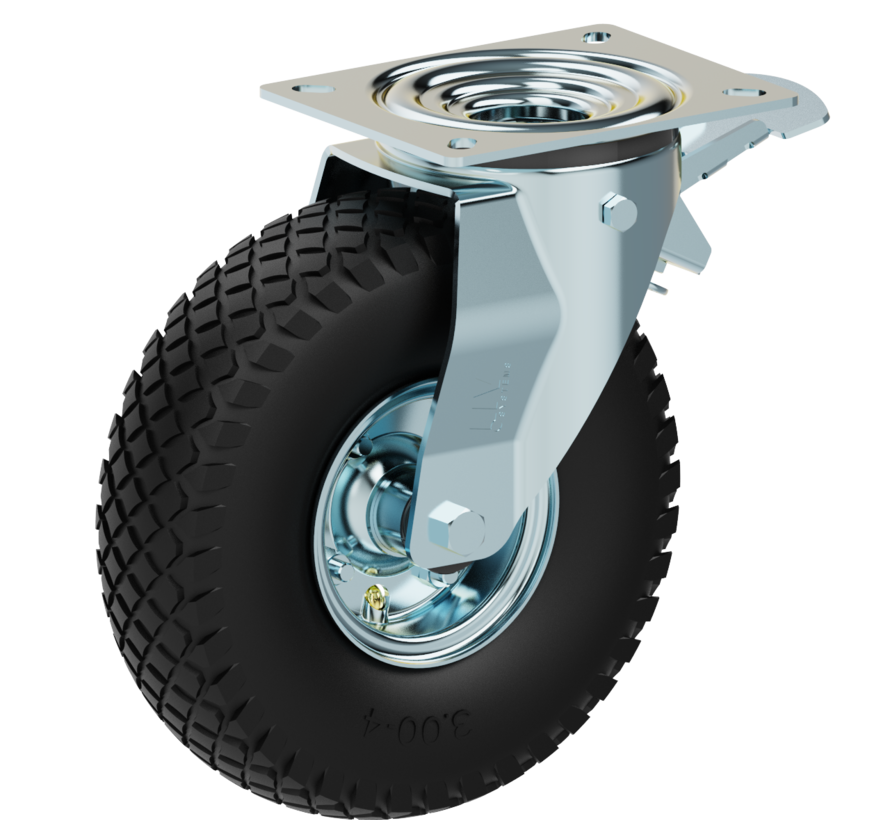

for rough floors Swivel castor with break+ black pneumatic Ø260 x W85mm for 200kg Prod ID: 47320

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

for rough floors Swivel castor-break with an overall height of 290 mm
Wheel diameter x width: 260 x 85 mm
Top plate with 4 mounting holes of 11 mm, mounting hole distance 140x105 mm and top plate outer dimensions: 175x140 mm
Wheel with roller bearing and black pneumatic with hardness 80 ° Shore A on steel rim with electrogalvanization zinc plating anti-corrosion protection Cr6-free.

Approved and tested load capacity
Dynamic 200 kg
Static 250 kg

Temperature range:
Continious operation: -5 | +60°C
Short (10 min) exposure: -5 | +60°C

Advantages of this Camel Trophy trip Swivel castor:
✓ absorbing
✓ pass the obstacle
✓ uneven ground

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS for rough floors Swivel castor with break+ black pneumatic Ø260 x W85mm for 200kg Prod ID: 47320

ID 47320: Castor overall height 290 mm | 4 mounting holes with distance 140x105 mm | Wheel with roller bearing and black pneumatic with hardness 80 ° Shore A | Camel Trophy trip, Shock absorbing, easily pass the obstacle, for uneven ground
