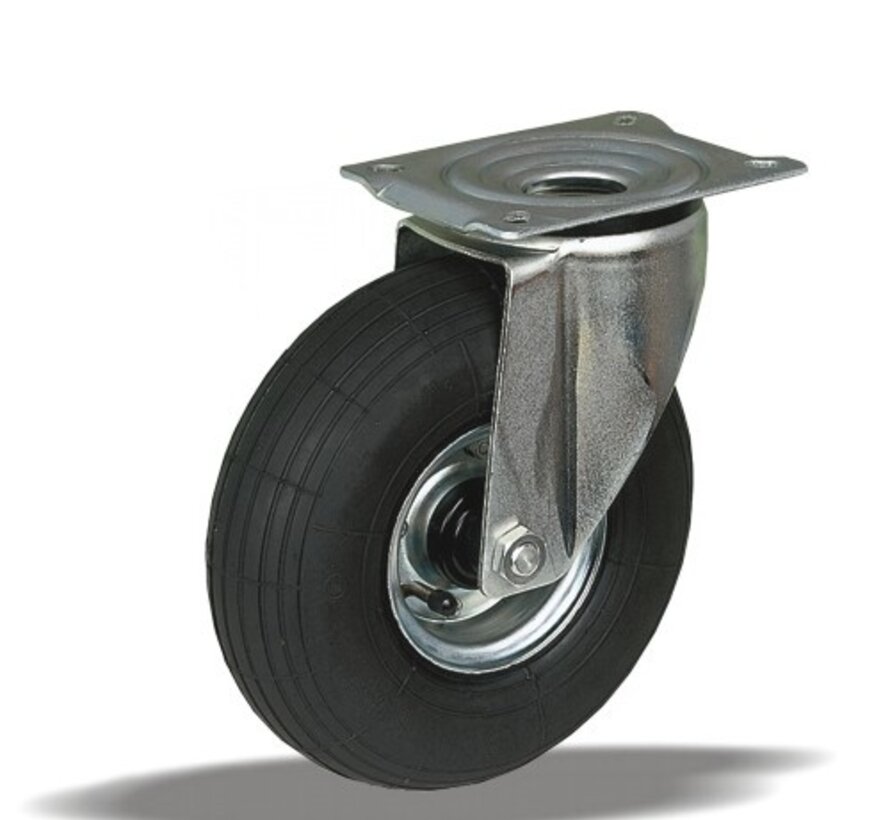

for rough floors Swivel castor + black pneumatic Ø260 x W85mm for 200kg Prod ID: 30174

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

for rough floors Swivel castor with an overall height of 290 mm
Wheel diameter x width: 260 x 85 mm
Top plate with 4 mounting holes of 11 mm, mounting hole distance 140x105 mm and top plate outer dimensions: 175x140 mm
Wheel with roller bearing and black pneumatic with hardness 80 ° Shore A on steel rim with electrogalvanization zinc plating anti-corrosion protection Cr6-free.

Approved and tested load capacity
Dynamic 200 kg
Static 250 kg

Temperature range:
Continious operation: -5 | +60°C
Short (10 min) exposure: -5 | +60°C

Advantages of this Camel Trophy trip Swivel castor:
✓ absorbing
✓ pass the obstacle
✓ uneven ground

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS for rough floors Swivel castor + black pneumatic Ø260 x W85mm for 200kg Prod ID: 30174

ID 30174: Castor overall height 290 mm | 4 mounting holes with distance 140x105 mm | Wheel with roller bearing and black pneumatic with hardness 80 ° Shore A | Camel Trophy trip, Shock absorbing, easily pass the obstacle, for uneven ground
