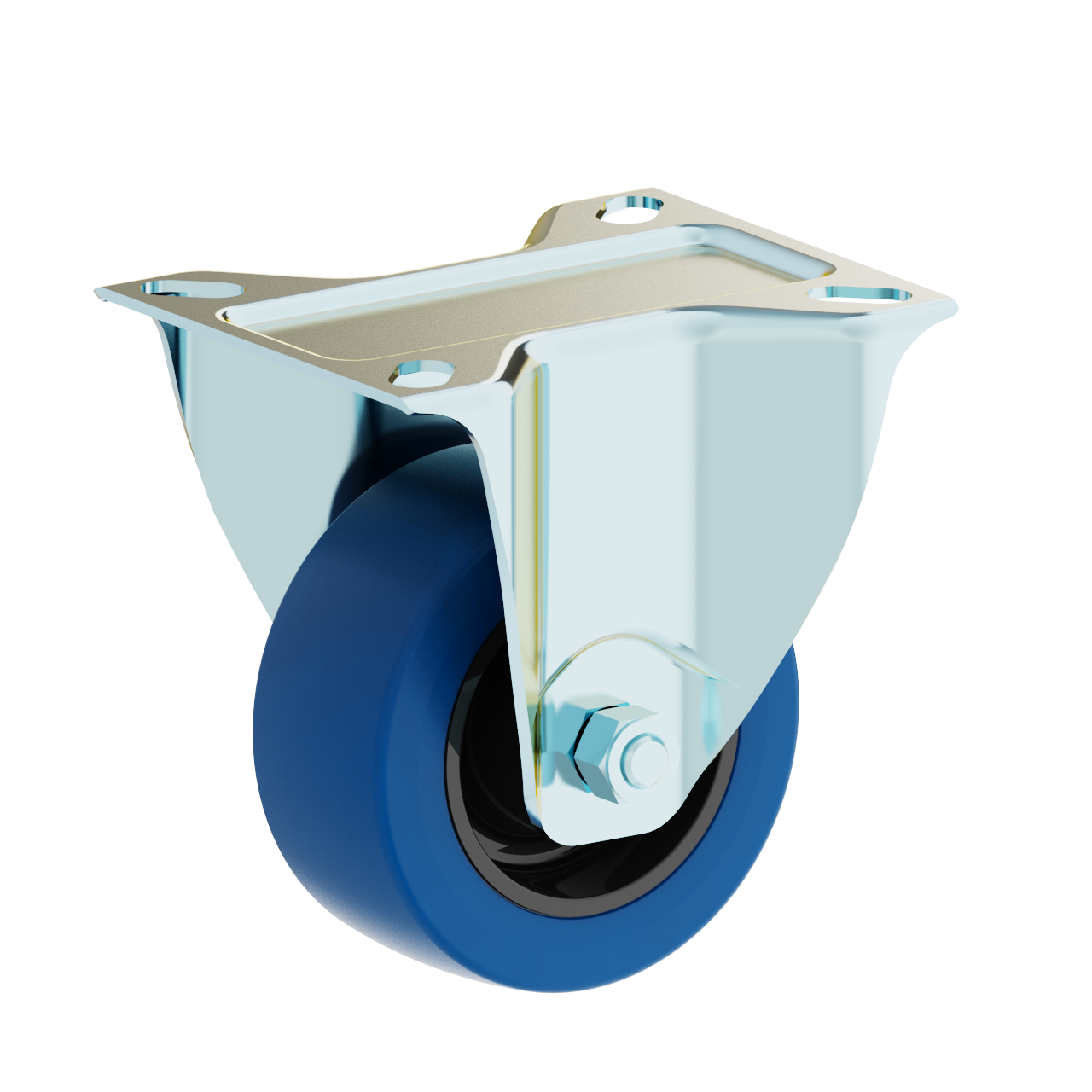

standard Fixed castor + elastic rubber tyre Ø100 x W35mm for 150kg Prod ID: 43805

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

standard Fixed castor with an overall height of 128 mm
Wheel diameter x width: 100 x 35 mm
Top plate with 4 mounting holes of 9 mm, mounting hole distance 80x60 mm and top plate outer dimensions: 105x85 mm
Wheel with roller bearing and elastic rubber tyre with hardness 70 ° Shore A on polyamide.

Approved and tested load capacity
Dynamic 150 kg
Static 180 kg

Temperature range:
Continious operation: -25 | +80°C
Short (10 min) exposure: -30 | +110°C

Advantages of this silent floor motion Fixed castor:
✓ rolling resistance
✓ to surface
✓ barrier passing

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS standard Fixed castor + elastic rubber tyre Ø100 x W35mm for 150kg Prod ID: 43805

ID 43805: Castor overall height 128 mm | 4 mounting holes with distance 80x60 mm | Wheel with roller bearing and elastic rubber tyre with hardness 70 ° Shore A | silent floor motion, low rolling resistance, delicate to surface, effortless barrier passing
