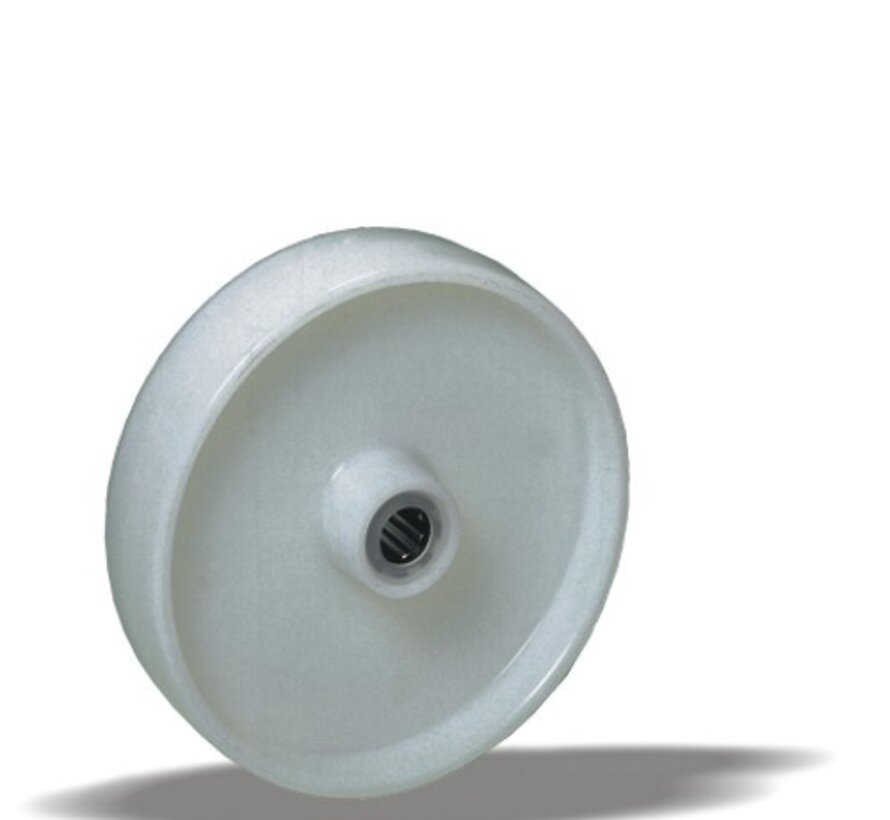

Wheel 150 mm, polyamide, plain bearing, axle hole 20 mm, 350 kg, Art. 2-763 A, wheel centre white

Wheel with solid polyamide wheel, wheel diameter 150 mm, on plain bearing. It carries 350 kg dynamic and 430 kg static, with a 20 mm axle hole.

  • Looking for a castor or wheel for your application? Contact us.
  • Ask us for CAD models in STEP and IGES formats
  • Short delivery times for large quantities of castors
  • Pressing steel OEM parts is our expertise
Download PDF See our factory (opens in a new tab)

You are in our product catalogue. This opens livsystems.eu in a new tab, where we show our factory and the background of the company.

Product description

TypeWheel
Wheel diameter150 mm
Wheel width40 mm
Treadsolid polyamide wheel, 70±5 Shore D
Wheel centrepolyamide
Bearingplain bearing
Load capacity, dynamic350 kg
Load capacity, static430 kg
Axle hole20 mm
Weight0.31 kg
Temperature, continuous-25 to +80 °C
Temperature, short exposure (max. 10 min)-30 to +110 °C
FittingWheel hub
Tread hardness70 Shore D

Properties and use

Polyamide resists many chemicals, carries high loads and takes shock impact. It tolerates large temperature swings. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).

Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 1 to 2 working days.

Specifications from the LIV product database, October 2026.
