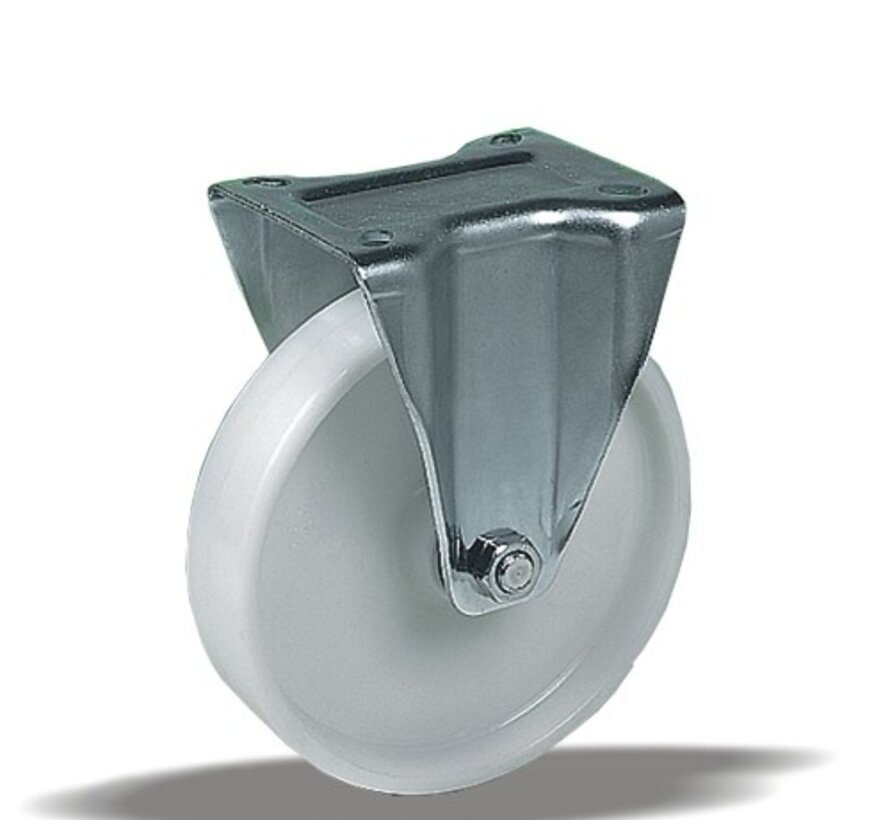

Fixed castor 125 mm, polyamide, plain bearing, plate 105x85 mm, 250 kg, product code 67016, wheel centre white

Fixed castor with solid polyamide wheel, wheel diameter 125 mm, on plain bearing. It carries 250 kg dynamic and 310 kg static, mounted on a 105x85 mm top plate with hole distance 80x60 mm.

  • Looking for a castor or wheel for your application? Contact us.
  • Ask us for CAD models in STEP and IGES formats
  • Short delivery times for large quantities of castors
  • Pressing steel OEM parts is our expertise
Download PDF See our factory (opens in a new tab)

You are in our product catalogue. This opens livsystems.eu in a new tab, where we show our factory and the background of the company.

Product description

TypeFixed castor
Wheel diameter125 mm
Wheel width38 mm
Treadsolid polyamide wheel, 70±5 Shore D
Wheel centrepolyamide
Bearingplain bearing
Load capacity, dynamic250 kg
Load capacity, static310 kg
Top plate105x85 mm
Hole distance80x60 mm
Fixing hole diameter9 mm
Overall height155 mm
Weight0.58 kg
Temperature, continuous-25 to +80 °C
Temperature, short exposure (max. 10 min)-30 to +110 °C
Tread hardness70 Shore D

Fork zinc electroplated and Cr(VI)-free.

Properties and use

Polyamide resists many chemicals, carries high loads and takes shock impact. It tolerates large temperature swings. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).

Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 1 to 2 working days.

Specifications from the LIV product database, October 2026.
