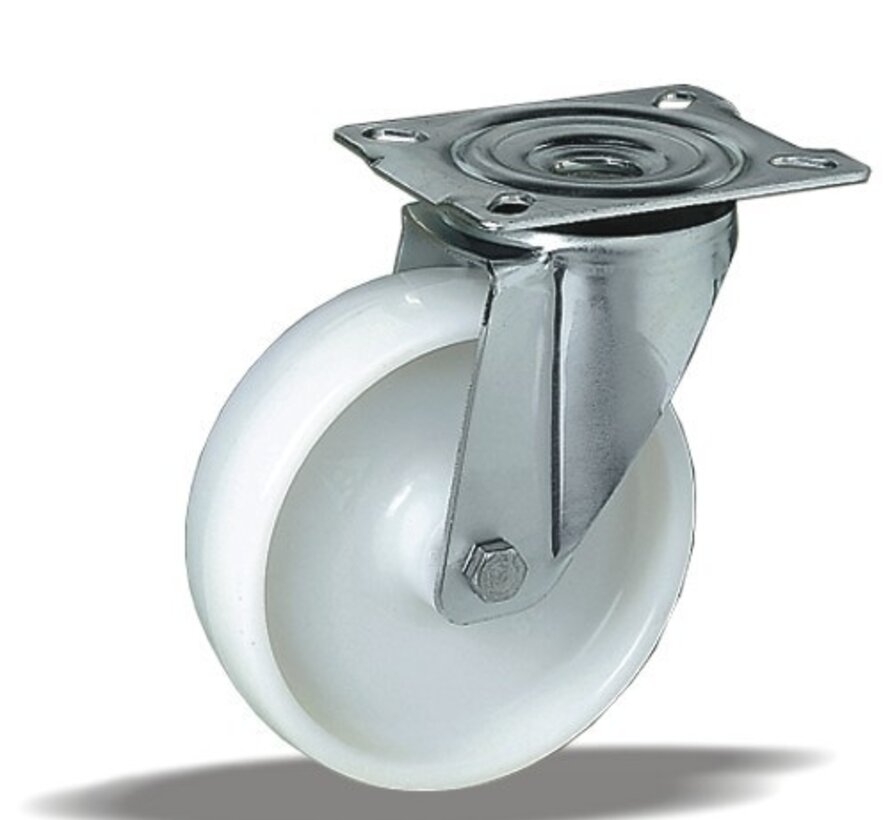

Swivel castor 200 mm, polyamide, plain bearing, plate 135x110 mm, 300 kg, Art. 2-674 ISO, wheel centre white

Swivel castor with solid polyamide wheel, wheel diameter 200 mm, on plain bearing. It carries 300 kg dynamic and 370 kg static, mounted on a 135x110 mm top plate with hole distance 105x80 mm.

  • Looking for a castor or wheel for your application? Contact us.
  • Ask us for CAD models in STEP and IGES formats
  • Short delivery times for large quantities of castors
  • Pressing steel OEM parts is our expertise
Download PDF See our factory (opens in a new tab)

You are in our product catalogue. This opens livsystems.eu in a new tab, where we show our factory and the background of the company.

Product description

TypeSwivel castor
Wheel diameter200 mm
Wheel width50 mm
Treadsolid polyamide wheel, 70±5 Shore D
Wheel centrepolyamide
Bearingplain bearing
Load capacity, dynamic300 kg
Load capacity, static370 kg
Top plate135x110 mm
Hole distance105x80 mm
Fixing hole diameter11 mm
Overall height232 mm
Offset60 mm
Weight2 kg
Temperature, continuous-25 to +80 °C
Temperature, short exposure (max. 10 min)-30 to +110 °C
Tread hardness70 Shore D

Fork zinc electroplated and Cr(VI)-free.

Properties and use

Polyamide resists many chemicals, carries high loads and takes shock impact. It tolerates large temperature swings. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).

Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 1 to 2 working days.

Specifications from the LIV product database, October 2026.
