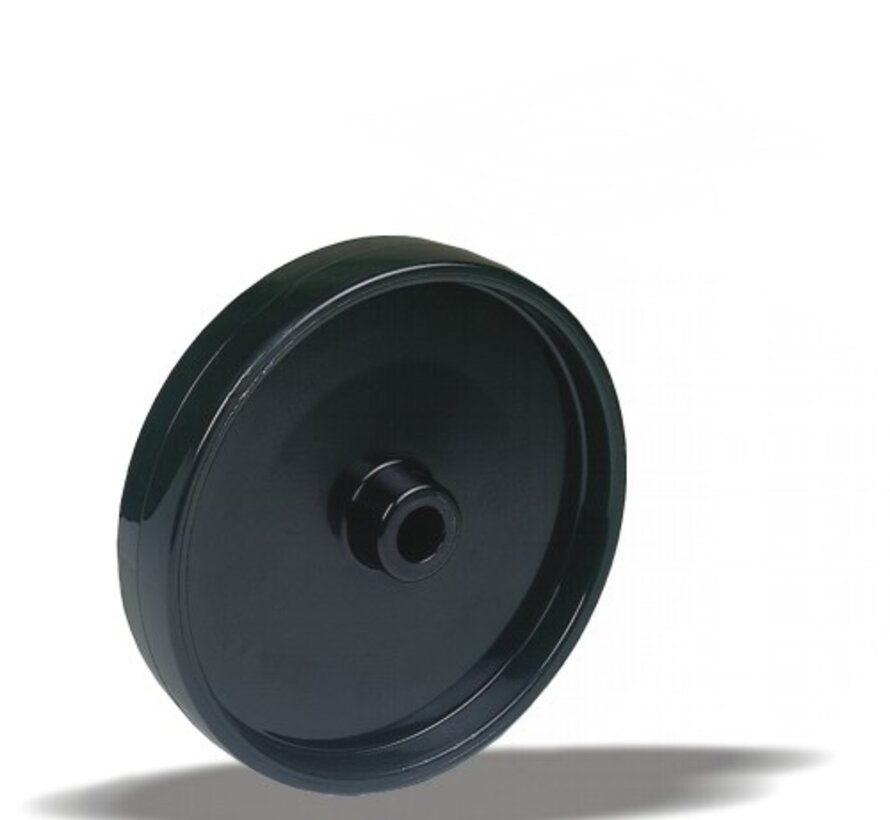

standard wheel + solid polyamide wheel Ø200 x W50mm for 300kg Prod ID: 66702

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

standard Wheel with roller bearing and solid polyamide wheel with hardness 70±5 Shore D
Wheel diameter x width: 200 x 50 mm
Axle hole: 20 mm
Hub length: 58 mm

Approved and tested load capacity
Dynamic 300 kg
Static 370 kg

Temperature range:
Continious operation: -25 | +80°C
Short (10 min) exposure: -30 | +110°C

Advantages of this Glide through the hall wheel:
✓ chemical resistance
✓ load capacity and shock impact resistant
✓ high temperature shifts

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS standard wheel + solid polyamide wheel Ø200 x W50mm for 300kg Prod ID: 66702

ID 66702:standard Wheel with roller bearing and solid polyamide wheel with hardness 70±5 Shore D | Axle hole: 20 mm | Hub length: 58 mm | Glide through the hall, good chemical resistance, high load capacity and shock impact resistant, for high temperatur
