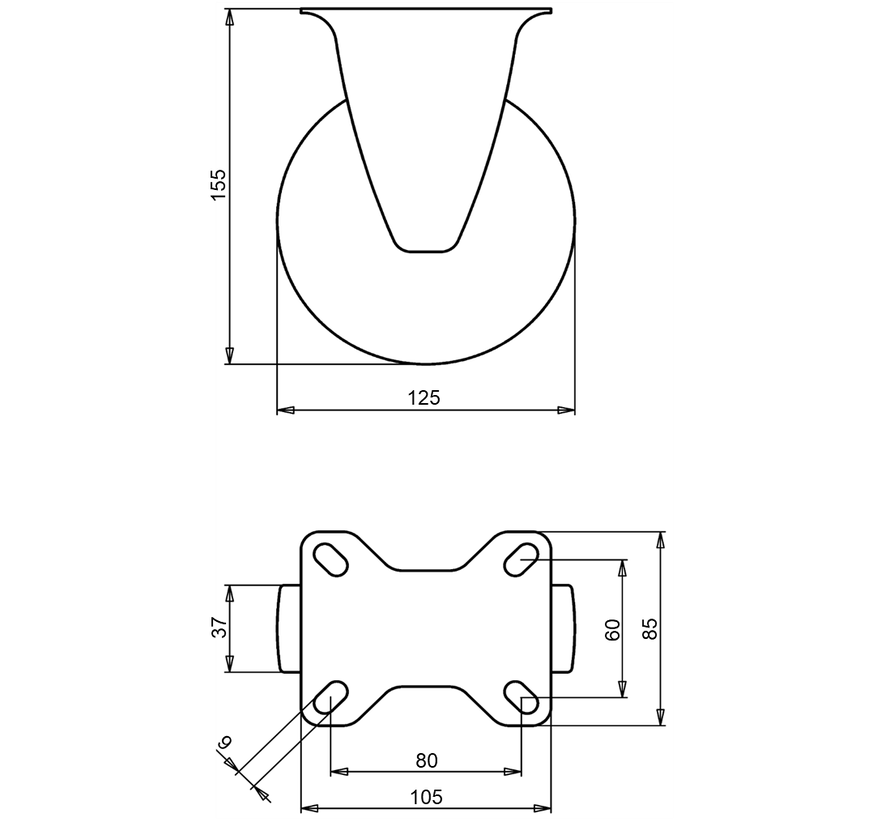

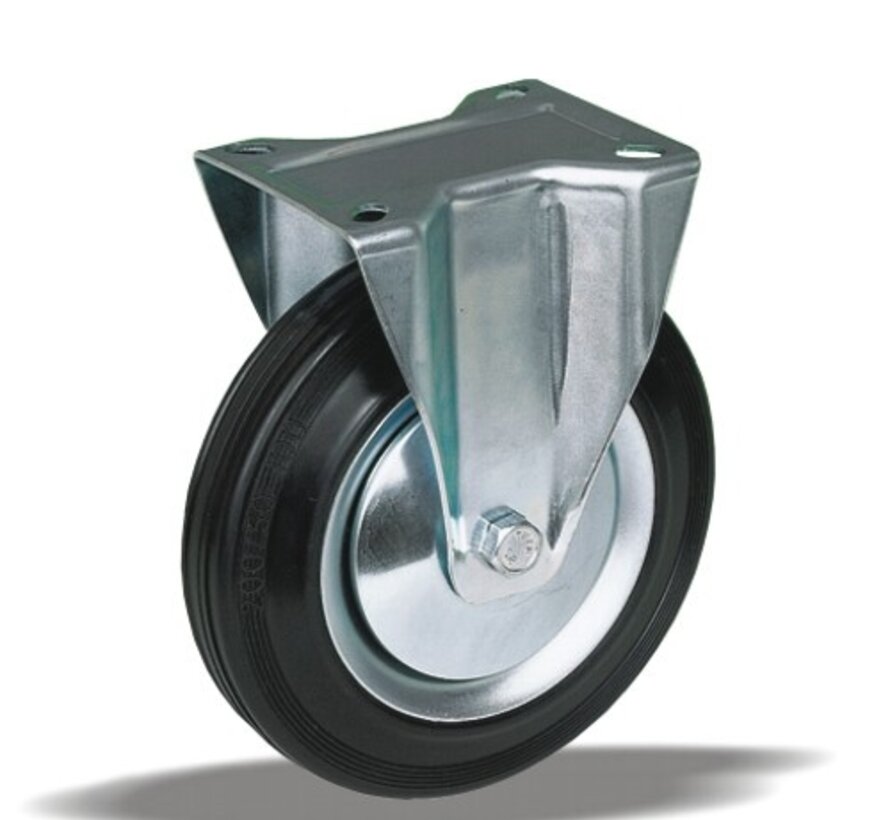

Fixed transport castor, 125 mm wheel diameter, black rubber tread, running on plain bearing. Rated load is 130 kg dynamic, 160 kg static, mounted on a 105x85 mm top plate with hole distance 80x60 mm.
| Type | Fixed transport castor |
|---|---|
| Wheel diameter | 125 mm |
| Wheel width | 37 mm |
| Tread | black rubber tread, 80 Shore A |
| Tread colour | black |
| Wheel centre | steel, zinc electroplated, Cr(VI)-free |
| Bearing | plain bearing |
| Load capacity, dynamic | 130 kg |
| Load capacity, static | 160 kg |
| Top plate | 105x85 mm |
| Hole distance | 80x60 mm |
| Hole diameter | 9 mm |
| Overall height | 155 mm |
| Weight | 1.1 kg |
| Temperature, continuous | -20 to +70 °C |
| Temperature, short exposure (max. 10 min) | -30 to +80 °C |
Fork zinc electroplated and Cr(VI)-free. Tread free of PAH (EU directive 2005/69/EC). Tested to EN 12532.
Properties and use
Steers easily and copes with uneven floors and obstacles. Steel rim and rubber tyre make a strong wheel. On request: other wheel and tyre colours, and an electrically conductive (EDS) or antistatic tyre.
Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 24 hours.
Specifications from the LIV product database, October 2026.
