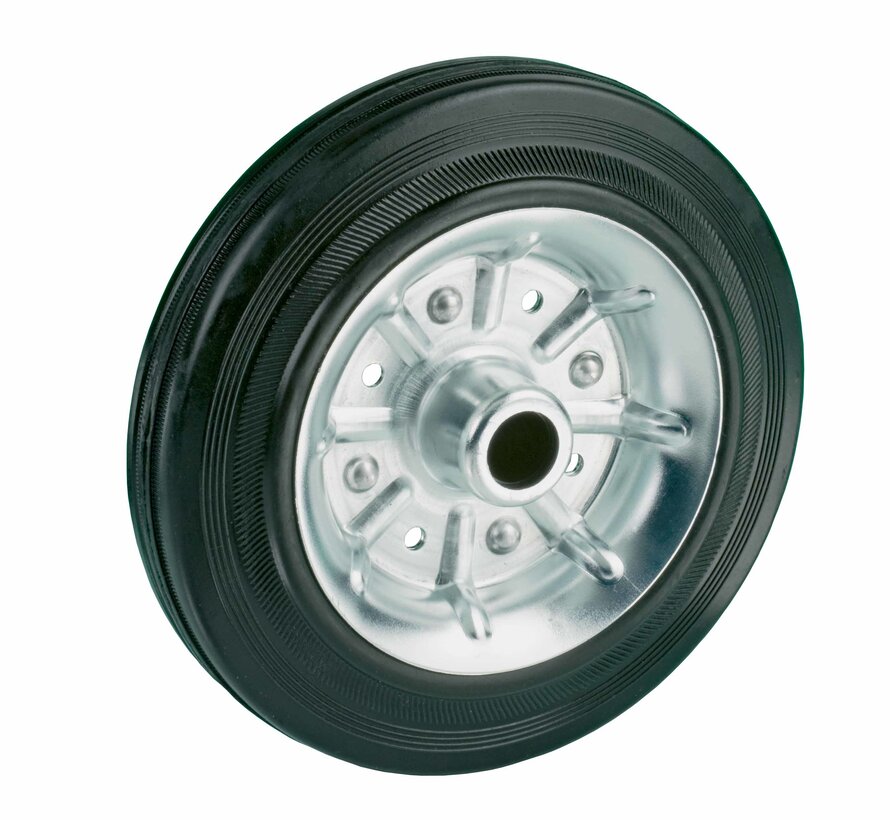

Wheel 100 mm, black rubber, plain bearing, axle hole 12 mm, 80 kg, Art. 2-123 ISO

Wheel with black rubber tread, wheel diameter 100 mm, on plain bearing. It carries 80 kg dynamic and 100 kg static, with a 12 mm axle hole.

  • Looking for a castor or wheel for your application? Contact us.
  • Ask us for CAD models in STEP and IGES formats
  • Short delivery times for large quantities of castors
  • Pressing steel OEM parts is our expertise
Download PDF See our factory (opens in a new tab)

You are in our product catalogue. This opens livsystems.eu in a new tab, where we show our factory and the background of the company.

Product description

TypeWheel
Wheel diameter100 mm
Wheel width32 mm
Treadblack rubber tread, 80 Shore A
Tread colourblack
Wheel centresteel, zinc electroplated, Cr(VI)-free
Bearingplain bearing
Load capacity, dynamic80 kg
Load capacity, static100 kg
Axle hole12 mm
Weight0.25 kg
Temperature, continuous-20 to +70 °C
Temperature, short exposure (max. 10 min)-30 to +80 °C
FittingWheel hub
Hub length44 mm

Tread free of PAH (EU directive 2005/69/EC). Tested to EN 12532.

Properties and use

Steers easily and copes with uneven floors and obstacles. Steel rim and rubber tyre make a strong wheel. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).

Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 1 to 2 working days.

Specifications from the LIV product database, October 2026.
