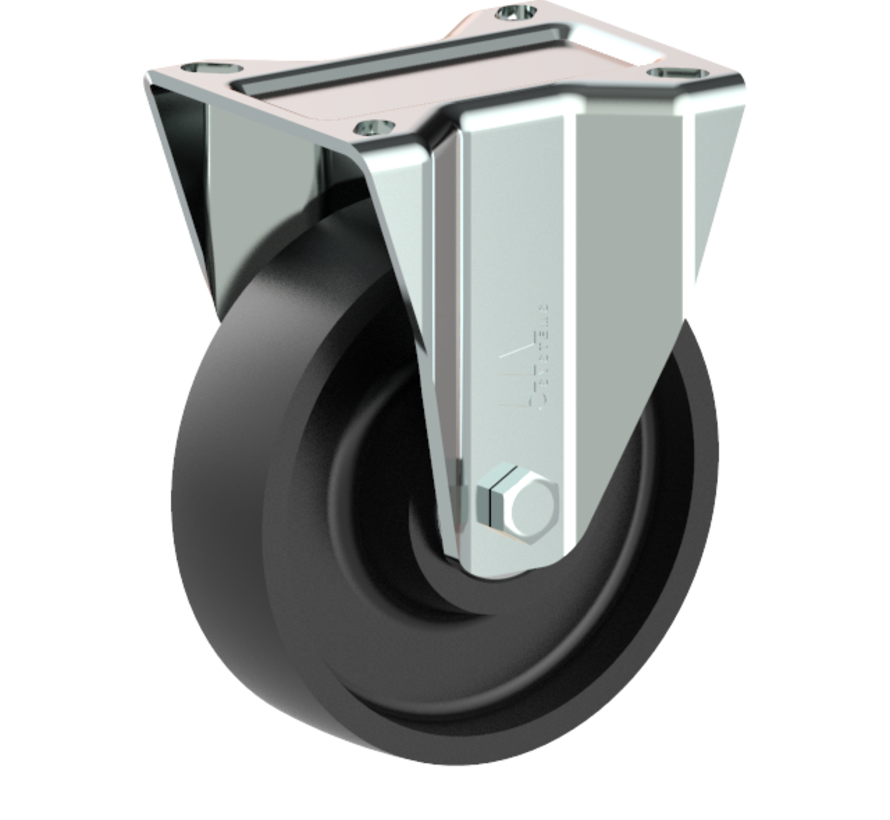

Heavy duty fixed castor 160 mm, cast iron, ball bearing, plate 140x110 mm, 600 kg, Art. 2-151-32K

Heavy duty fixed castor with a 160 mm wheel, cast iron tread, on ball bearing. It carries 600 kg dynamic and 750 kg static, mounted on a 140x110 mm top plate with hole distance 105x80 mm.

  • Looking for a castor or wheel for your application? Contact us.
  • Ask us for CAD models in STEP and IGES formats
  • Short delivery times for large quantities of castors
  • Pressing steel OEM parts is our expertise
Download PDF See our factory (opens in a new tab)

You are in our product catalogue. This opens livsystems.eu in a new tab, where we show our factory and the background of the company.

Product description

TypeHeavy duty fixed castor
Wheel diameter160 mm
Wheel width50 mm
Treadcast iron tread, 65 Shore A
Tread colourblack
Wheel centrecast iron
Bearingball bearing
Load capacity, dynamic600 kg
Load capacity, static750 kg
Top plate140x110 mm
Hole distance105x80 mm
Fixing hole diameter11 mm
Overall height200 mm
Weight4.1 kg
Temperature, continuous-40 to +130 °C
Temperature, short exposure (max. 10 min)-40 to +130 °C
Directional lockOptional
Available versions (2)
  • Long pedal
  • Short pedal

Fork zinc electroplated and Cr(VI)-free.

Properties and use

Wears slowly and rolls with low resistance. Large temperature changes are no problem. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).

Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 1 to 2 working days.

Specifications from the LIV product database, October 2026.
