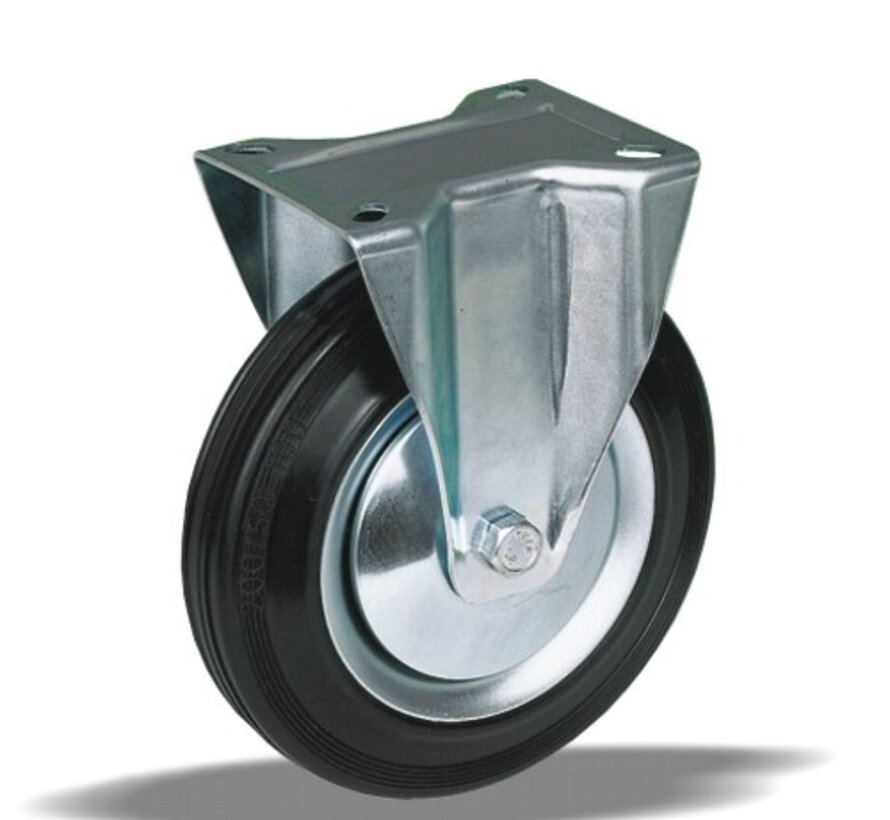

standard fixed transport castor + black rubber tyre Ø225 x W60mm for 250kg Prod ID: 55375

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

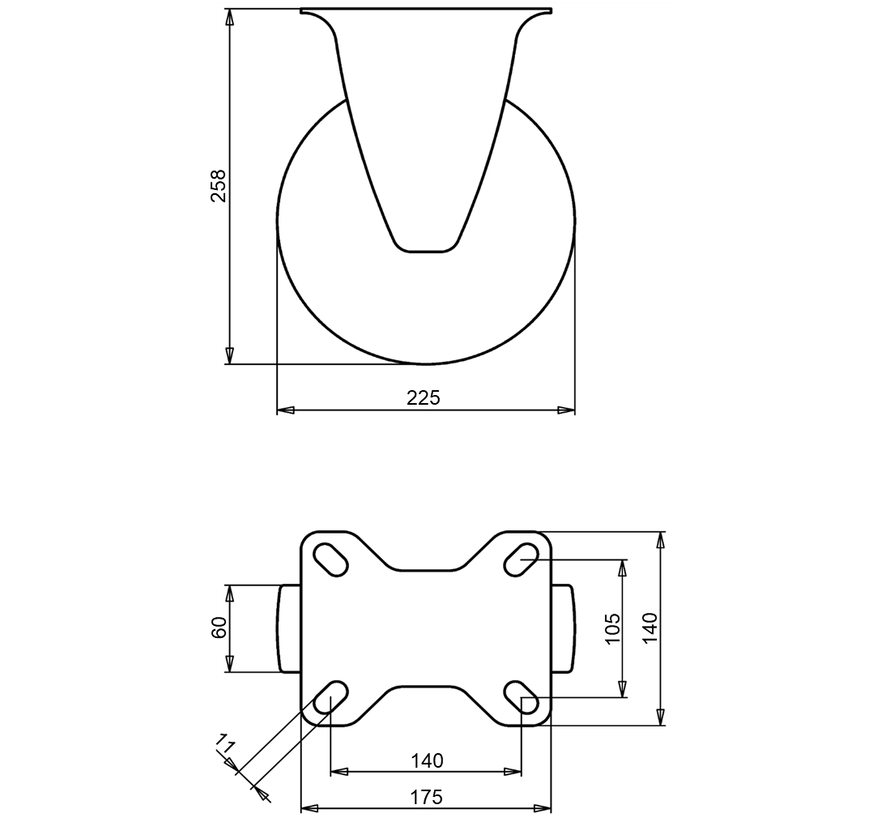

standard fixed transport castor with an overall height of 258 mm
Wheel diameter x width: 225 x 60 mm
Top plate with 4 mounting holes of 11 mm, mounting hole distance 140x105 mm and top plate outer dimensions: 175x140 mm
Wheel with roller bearing and black rubber tyre with hardness 80 ° Shore A on steel rim with electrogalvanization zinc plating anti-corrosion protection Cr6-free.

Approved and tested load capacity
Dynamic 250 kg
Static 310 kg

Temperature range:
Continious operation: -20 | +70°C
Short (10 min) exposure: -30 | +80°C

Advantages of this Comfortable drive fixed transport castor:
✓ to manoeuvre
✓ performance on uneven floor or obstacles
✓ and strong wheel systems

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS standard fixed transport castor + black rubber tyre Ø225 x W60mm for 250kg Prod ID: 55375

ID 55375: Castor overall height 258 mm | 4 mounting holes with distance 140x105 mm | Wheel with roller bearing and black rubber tyre with hardness 80 ° Shore A | Comfortable drive, easy to manoeuvre, good performance on uneven floor or obstacles, robust a
