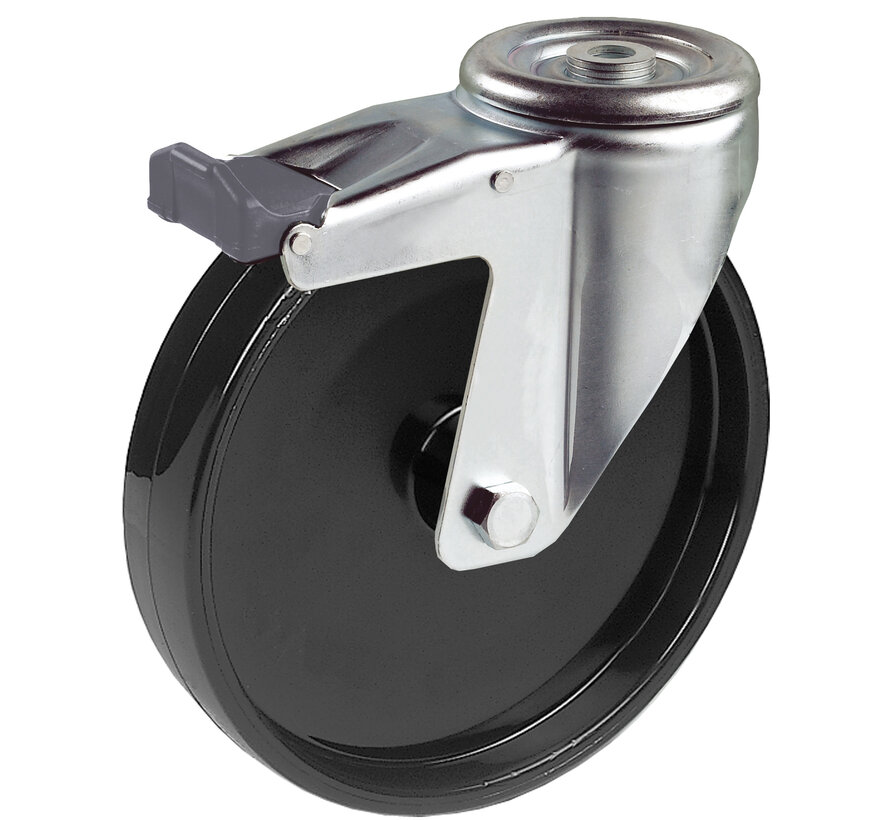

Swivel castor with total lock 125 mm, polypropylene, ball bearing, bolt hole 12.5 mm, 150 kg, product code 42924, wheel centre black

Swivel castor with total lock with a 125 mm wheel, solid polypropylene wheel, on ball bearing. It carries 150 kg dynamic and 180 kg static, fixed with a 12.5 mm bolt hole. The total lock brakes the rotation of the wheel and the swivel head.

  • Looking for a castor or wheel for your application? Contact us.
  • Ask us for CAD models in STEP and IGES formats
  • Short delivery times for large quantities of castors
  • Pressing steel OEM parts is our expertise
Download PDF See our factory (opens in a new tab)

You are in our product catalogue. This opens livsystems.eu in a new tab, where we show our factory and the background of the company.

Product description

TypeSwivel castor with total lock
Wheel diameter125 mm
Wheel width38 mm
Treadsolid polypropylene wheel, 60±5 Shore D
Wheel centrepolypropylene
Bearingball bearing
Load capacity, dynamic150 kg
Load capacity, static180 kg
Fittingsingle bolt hole
Hole diameter12.5 mm
Overall height155 mm
Offset40 mm
Braketotal lock (locks wheel and swivel)
Weight0.74 kg
Temperature, continuous-20 to +60 °C
Top plate size70 mm
Tread hardness60 Shore D

Fork zinc electroplated and Cr(VI)-free.

Properties and use

Polypropylene resists acids, wears slowly and rolls with low resistance. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).

Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 1 to 2 working days.
