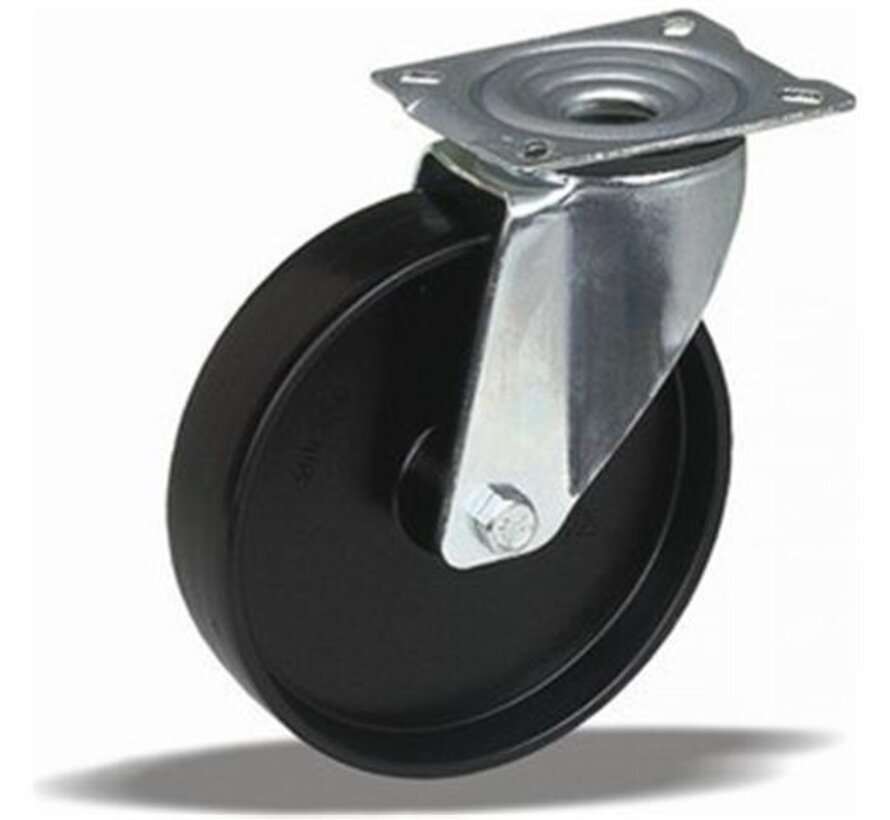

standard Swivel castor with an overall height of 155 mm
Wheel diameter x width: 125 x 38 mm
Top plate with 4 mounting holes of 9 mm, mounting hole distance 80x60 mm and top plate outer dimensions: 105x85 mm
Wheel with ball bearing and solid polypropylene wheel with hardness 60±5 Shore D.
Approved and tested load capacity
Dynamic 150 kg
Static 180 kg
Temperature range:
Continious operation: -20 | +60°C
Short (10 min) exposure: /°C
Advantages of this Long floor drive Swivel castor:
✓ acidic environment
✓ wear off
✓ rolling resistance
standard Swivel castor + solid polypropylene wheel Ø125 x W38mm for 150kg Prod ID: 42833
- Product description
- Deep draw press forming and surface treatment of OE steel parts is our expertise
Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise
Deep draw press forming and surface treatment of OE steel parts is our expertise
Product information
- Article code 2-662-25K
- SKU 42833
- EAN 3838461428333
Specifications
Recently viewed
-
Swivel castor + solid polypropylene wheel Ø125 x W38mm for 150kg
ID 42833: Castor overall height 155 mm | 4 mounting holes with distance 80x60 mm | Wheel w...
-
