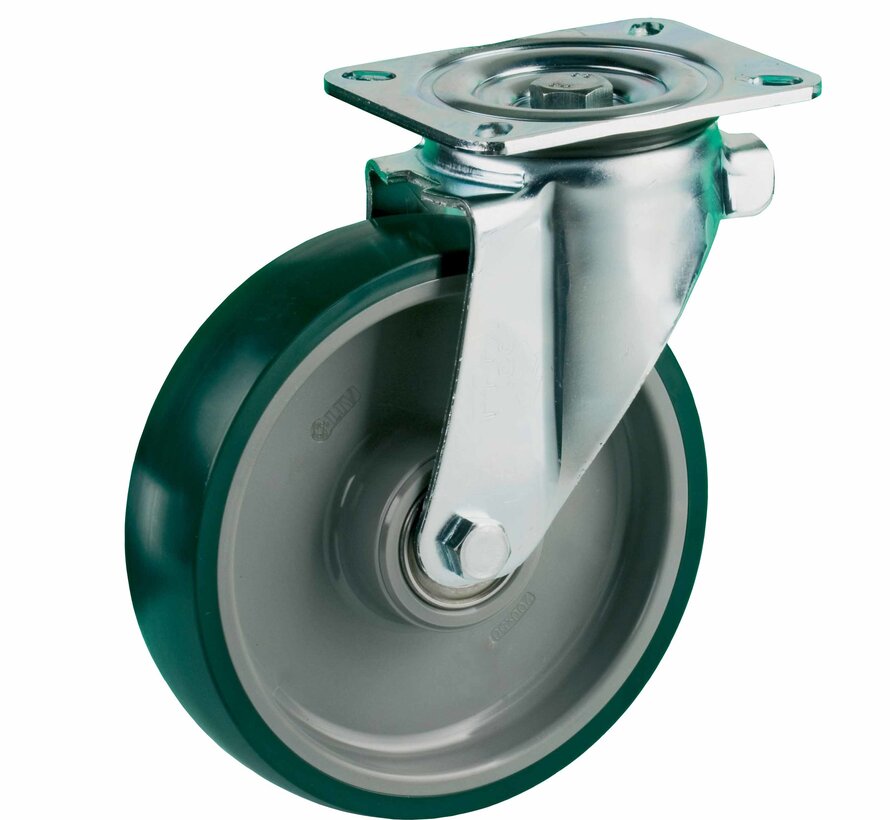

heavy duty Swivel castor + injection-moulded polyurethane tread Ø160 x W50mm for 400kg Prod ID: 42584

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

heavy duty Swivel castor with an overall height of 200 mm
Wheel diameter x width: 160 x 50 mm
Top plate with 4 mounting holes of 11 mm, mounting hole distance 105x80 mm and top plate outer dimensions: 140x110 mm
Wheel with roller bearing and injection-moulded polyurethane tread with hardness 92 ° Shore A on polyamide.

Approved and tested load capacity
Dynamic 400 kg
Static 500 kg

Temperature range:
Continious operation: -25 | +55°C
Short (10 min) exposure: -30 | +55°C

Advantages of this Power ride Swivel castor:
✓ chemical resistance
✓ surface pressure
✓ force to start

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS heavy duty Swivel castor + injection-moulded polyurethane tread Ø160 x W50mm for 400kg Prod ID: 42584

ID 42584: Castor overall height 200 mm | 4 mounting holes with distance 105x80 mm | Wheel with roller bearing and injection-moulded polyurethane tread with hardness 92 ° Shore A | Power ride, wide chemical resistance, small surface pressure, low force to
