stainless steel Swivel castor + elastic rubber tyre Ø125 x W35mm for 200kg Prod ID: 42264

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

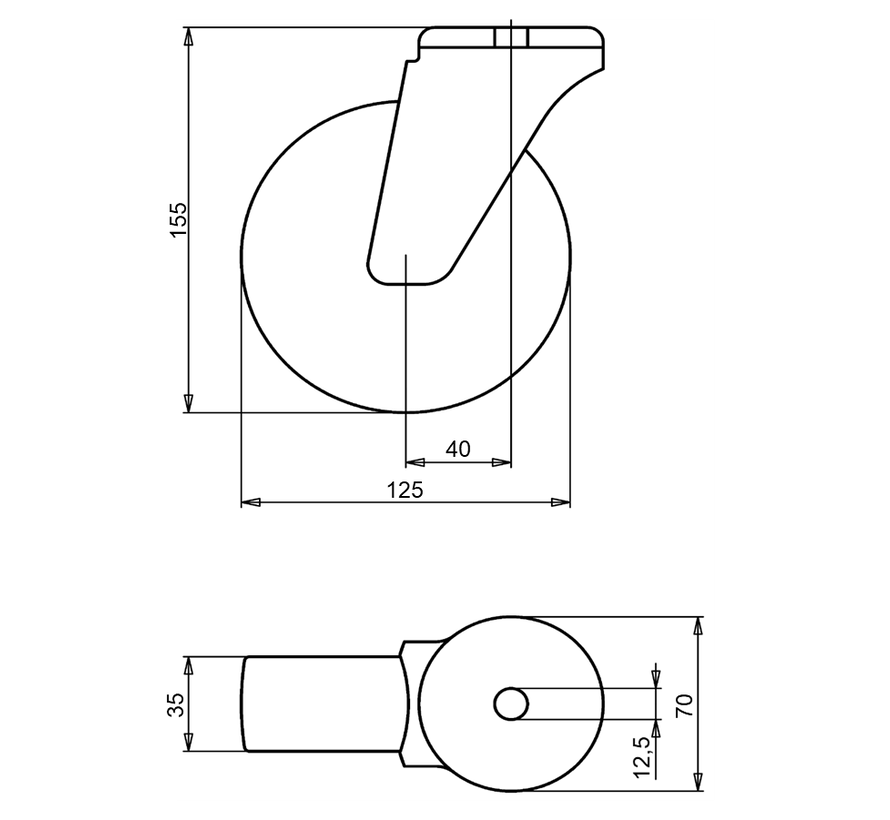

stainless steel Swivel castor with an overall height of 155 mm
Wheel diameter x width: 125 x 35 mm
Top plate with 4 mounting holes of 12,5 mm, mounting hole distance #$% mm and top plate outer dimensions: 70 mm
Wheel with ball bearing and elastic rubber tyre with hardness 70 ° Shore A on polyamide.

Approved and tested load capacity
Dynamic 200 kg
Static 250 kg

Temperature range:
Continious operation: -25 | +80°C
Short (10 min) exposure: -30 | +110°C

Advantages of this Tile floor ride Swivel castor:
✓ absorbing
✓ ride over obstacles
✓ to keep clean

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS stainless steel Swivel castor + elastic rubber tyre Ø125 x W35mm for 200kg Prod ID: 42264

ID 42264: Castor overall height 155 mm | 4 mounting holes with distance #$% mm | Wheel with ball bearing and elastic rubber tyre with hardness 70 ° Shore A | Tile floor ride, shock absorbing, smooth ride over obstacles, easy to keep clean
