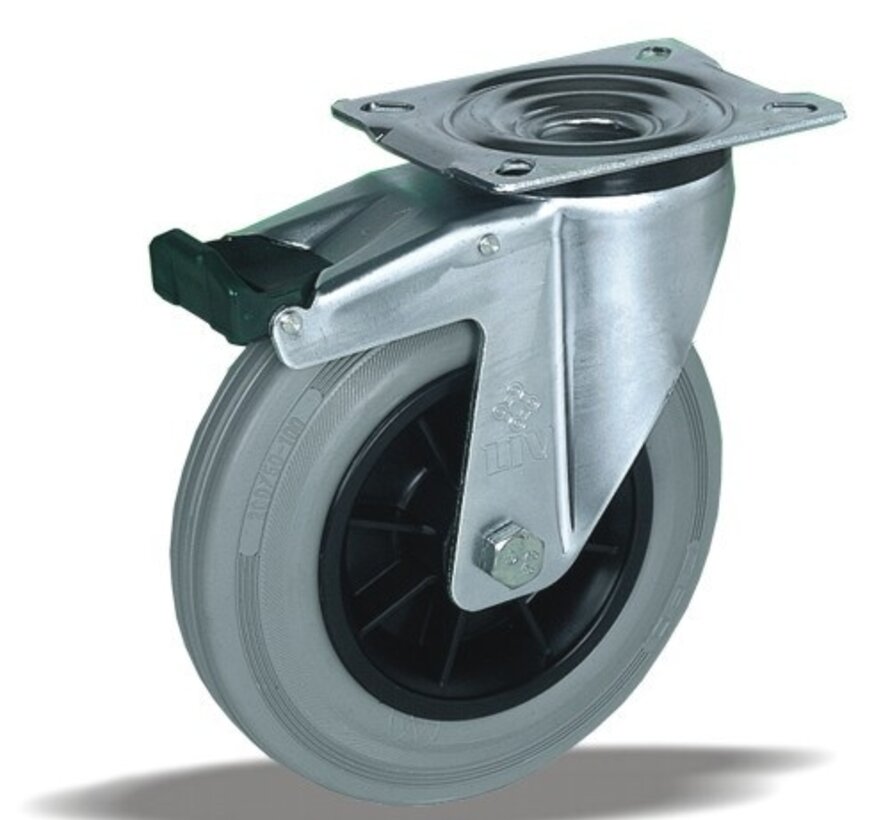

stainless steel Swivel castor with brake + grey rubber tyre Ø180 x W50mm for 200kg Prod ID: 41904

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

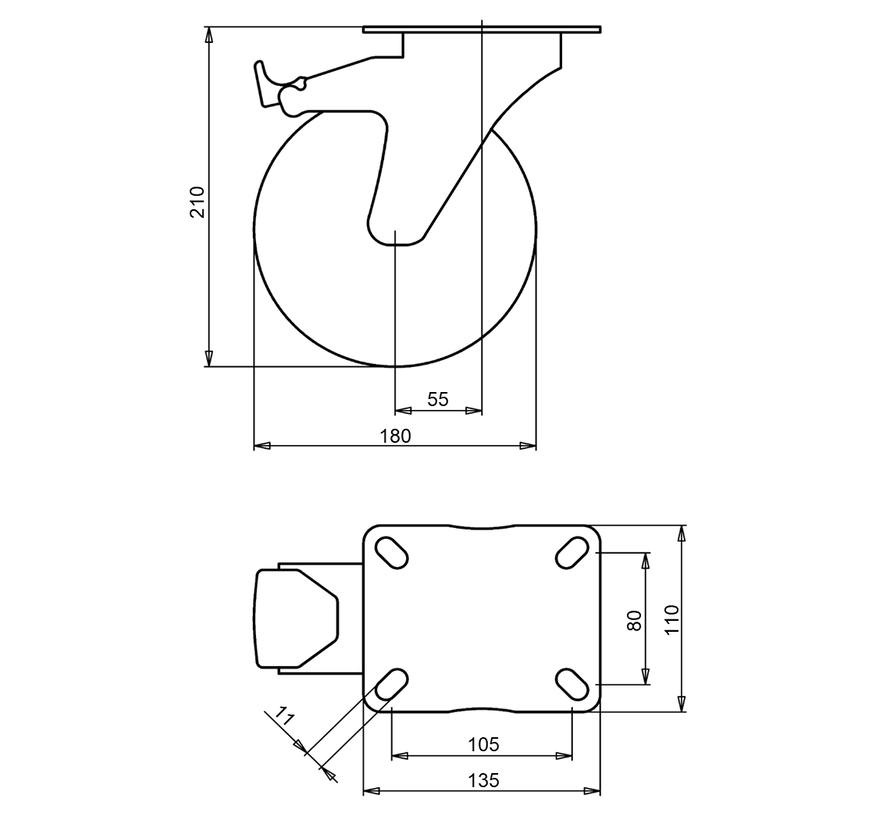

stainless steel Swivel castor with brake with an overall height of 210 mm
Wheel diameter x width: 180 x 50 mm
Top plate with 4 mounting holes of 11 mm, mounting hole distance 105x80 mm and top plate outer dimensions: 135x110 mm
Wheel with plain bearing and grey rubber tyre with hardness 83 ° shore A on polypropylene
the double brake system, brakes the turning of the wheel and the swivel rotation.

Approved and tested load capacity
Dynamic 200 kg
Static 250 kg

Temperature range:
Continious operation: -20 | +70°C
Short (10 min) exposure: -30 | +80°C

Advantages of this Floor floor turns Swivel castor with brake:
✓ preservation
✓ and steam proof
✓ obstacle smooth pass

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS stainless steel Swivel castor with brake + grey rubber tyre Ø180 x W50mm for 200kg Prod ID: 41904

ID 41904: Castor overall height 210 mm | 4 mounting holes with distance 105x80 mm | Wheel with plain bearing and grey rubber tyre with hardness 83 ° shore A | The double brake system, brakes the turning of the wheel and the swivel rotation. | Floor floor
