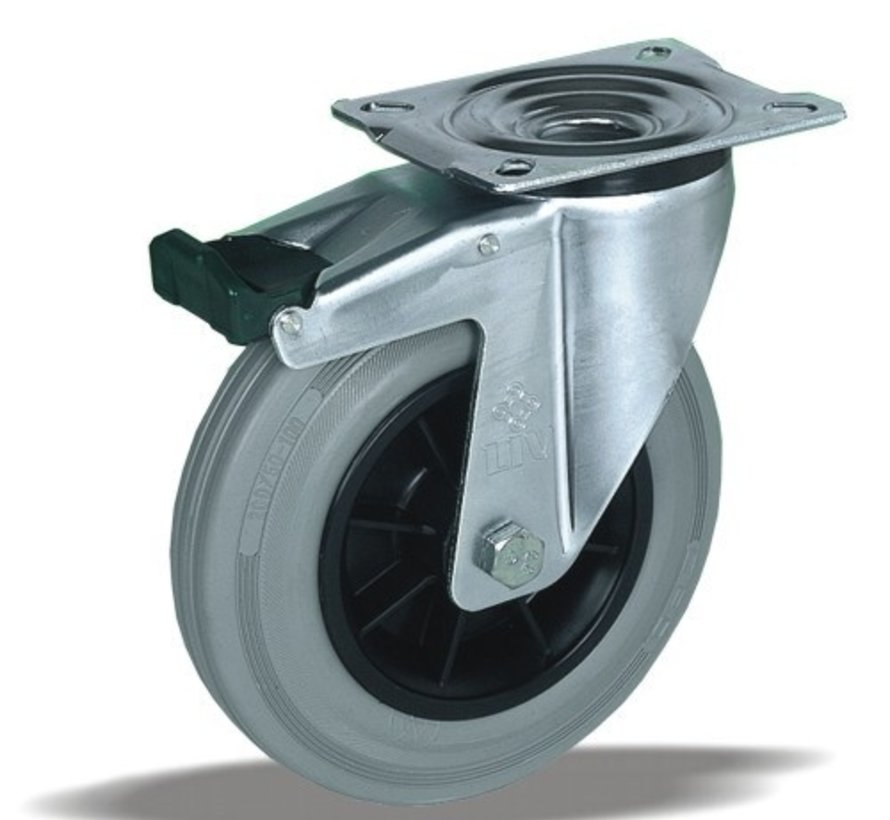

stainless steel Swivel castor with brake + grey rubber tyre Ø150 x W40mm for 170kg Prod ID: 41893

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

stainless steel Swivel castor with brake with an overall height of 180 mm
Wheel diameter x width: 150 x 40 mm
Top plate with 4 mounting holes of 11 mm, mounting hole distance 105x80 mm and top plate outer dimensions: 135x110 mm
Wheel with plain bearing and grey rubber tyre with hardness 83 ° shore A on polypropylene
the double brake system, brakes the turning of the wheel and the swivel rotation.

Approved and tested load capacity
Dynamic 170 kg
Static 210 kg

Temperature range:
Continious operation: -20 | +70°C
Short (10 min) exposure: -30 | +80°C

Advantages of this Floor floor turns Swivel castor with brake:
✓ preservation
✓ and steam proof
✓ obstacle smooth pass

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS stainless steel Swivel castor with brake + grey rubber tyre Ø150 x W40mm for 170kg Prod ID: 41893

ID 41893: Castor overall height 180 mm | 4 mounting holes with distance 105x80 mm | Wheel with plain bearing and grey rubber tyre with hardness 83 ° shore A | The double brake system, brakes the turning of the wheel and the swivel rotation. | Floor floor

Quantity

You need Innovative & durable wheel solutions? contact us Tooltip The result of our quality is maximum performance!
Ask us for CAD/STEP/Iges Models
Fastest delivery of high quantities of castors possible
Press forming steel OEM parts is our expetise
