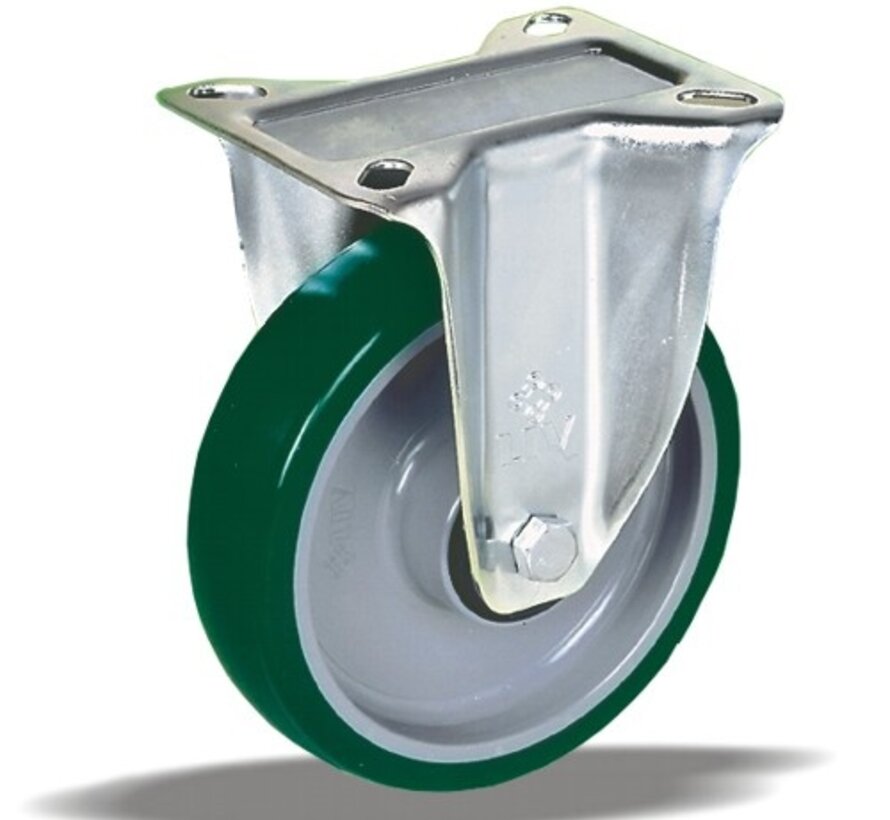

stainless steel Fixed castor + injection-moulded polyurethane tread Ø200 x W50mm for 300kg Prod ID: 41713

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

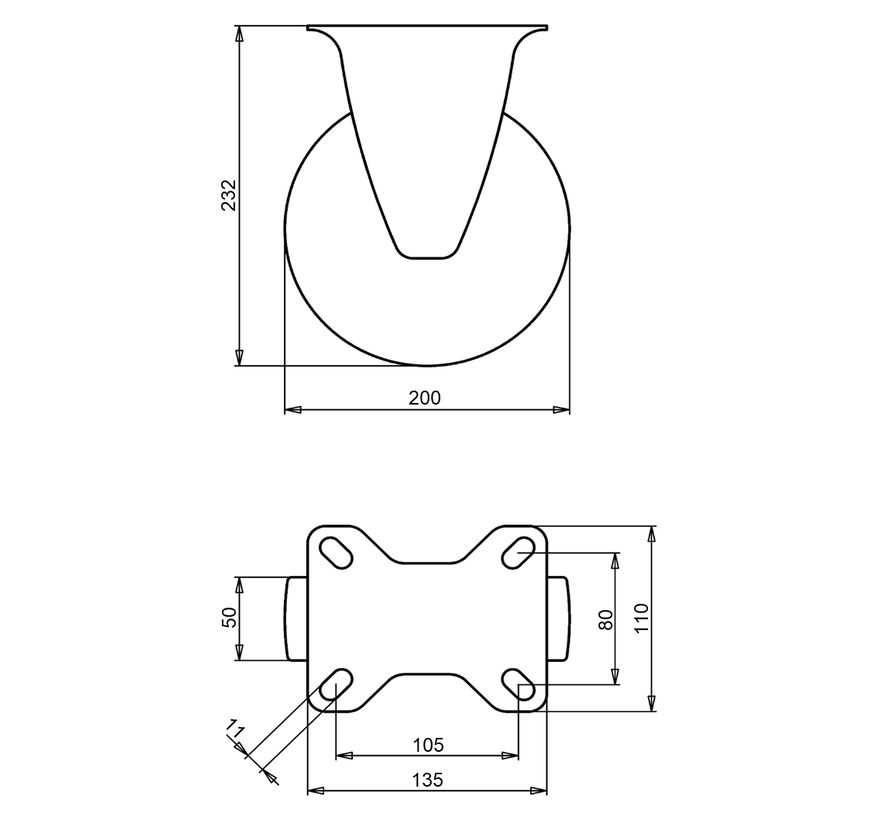

stainless steel Fixed castor with an overall height of 232 mm
Wheel diameter x width: 200 x 50 mm
Top plate with 4 mounting holes of 11 mm, mounting hole distance 105x80 mm and top plate outer dimensions: 135x110 mm
Wheel with plain bearing and injection-moulded polyurethane tread with hardness 92 ° Shore A on polyamide.

Approved and tested load capacity
Dynamic 300 kg
Static 370 kg

Temperature range:
Continious operation: -25 | +55°C
Short (10 min) exposure: -30 | +55°C

Advantages of this No trail highway drive Fixed castor:
✓ deformation if rarely moved
✓ range of temperatures
✓ resistant

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS stainless steel Fixed castor + injection-moulded polyurethane tread Ø200 x W50mm for 300kg Prod ID: 41713

ID 41713: Castor overall height 232 mm | 4 mounting holes with distance 105x80 mm | Wheel with plain bearing and injection-moulded polyurethane tread with hardness 92 ° Shore A | No trail highway drive, low deformation if rarely moved, wide range of tempe
