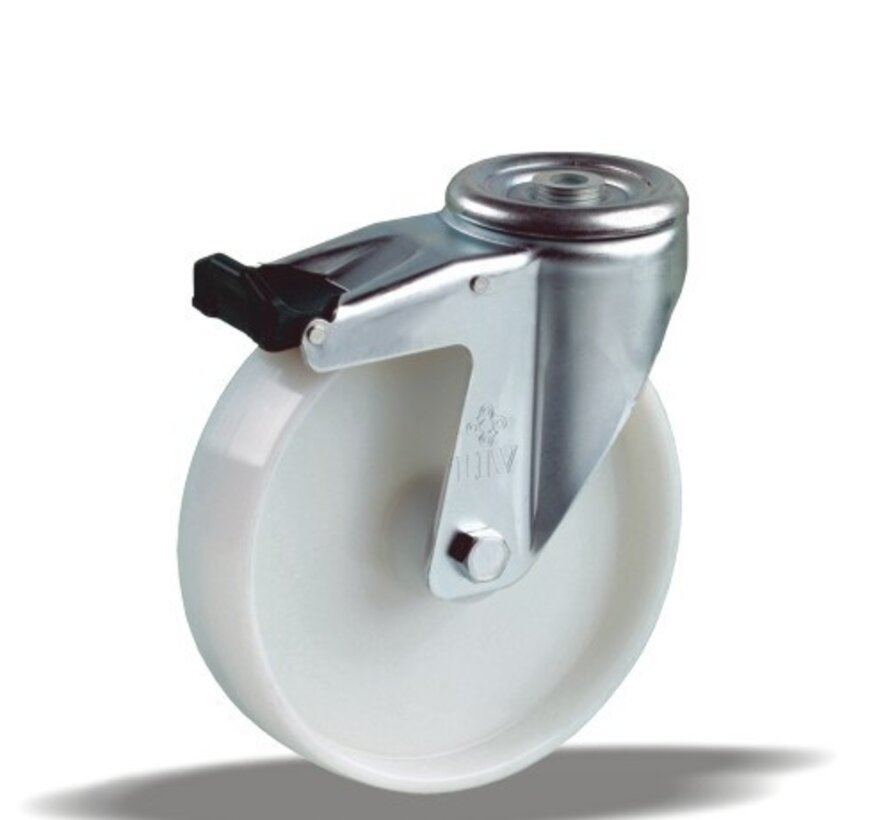

stainless steel Swivel castor with brake + solid polyamide wheel Ø200 x W50mm for 300kg Prod ID: 41695

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

stainless steel Swivel castor with brake with an overall height of 232 mm
Wheel diameter x width: 200 x 50 mm
Top plate with 4 mounting holes of 12,5 mm, mounting hole distance #$% mm and top plate outer dimensions: 93 mm
Wheel with plain bearing and solid polyamide wheel with hardness 70±5 Shore D
the double brake system, brakes the turning of the wheel and the swivel rotation.

Approved and tested load capacity
Dynamic 300 kg
Static 370 kg

Temperature range:
Continious operation: -25 | +80°C
Short (10 min) exposure: -30 | +110°C

Advantages of this Steamy floor in Swivel castor with brake:
✓ washing alowed
✓ shining
✓ hot and wet conditions

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS stainless steel Swivel castor with brake + solid polyamide wheel Ø200 x W50mm for 300kg Prod ID: 41695

ID 41695: Castor overall height 232 mm | 4 mounting holes with distance #$% mm | Wheel with plain bearing and solid polyamide wheel with hardness 70±5 Shore D | The double brake system, brakes the turning of the wheel and the swivel rotation. | Steamy fl

Quantity

You need Innovative & durable wheel solutions? contact us Tooltip The result of our quality is maximum performance!
Ask us for CAD/STEP/Iges Models
Fastest delivery of high quantities of castors possible
Press forming steel OEM parts is our expetise
