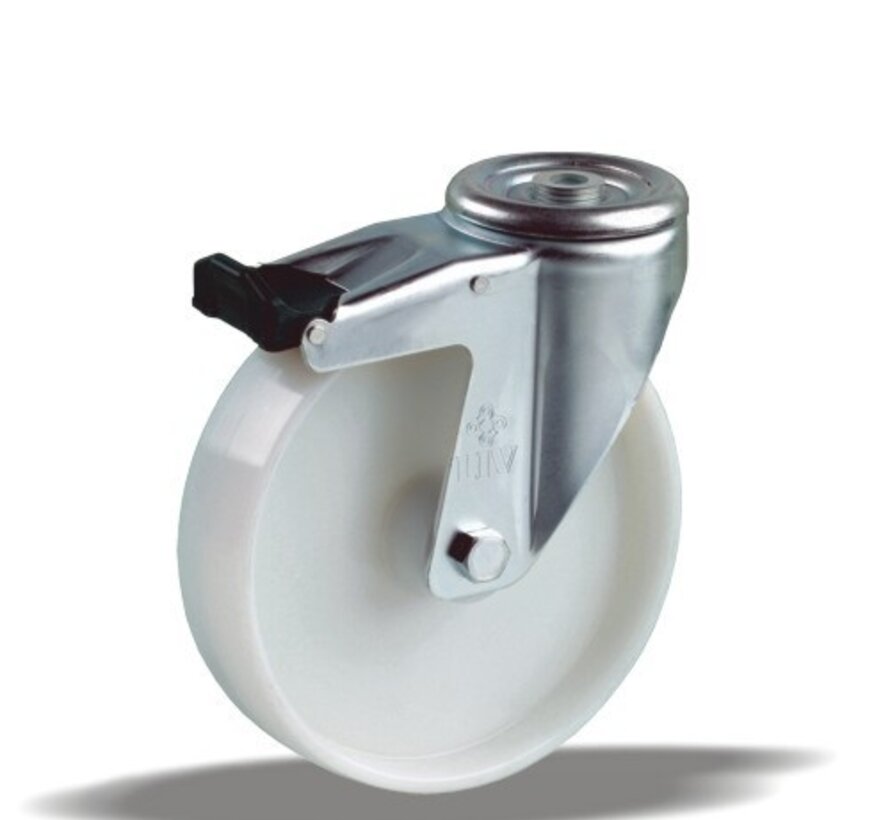

| Type | Stainless steel swivel castor with total brake |
|---|---|
| Wheel diameter | 150 mm |
| Wheel width | 46 mm |
| Tread | solid polyamide wheel, 70±5 Shore D |
| Wheel centre | polyamide |
| Bearing | plain bearing |
| Load capacity, dynamic | 300 kg |
| Load capacity, static | 370 kg |
| Fitting | single bolt hole |
| Hole diameter | 12.5 mm |
| Overall height | 180 mm |
| Offset | 50 mm |
| Brake | total brake (locks wheel and swivel) |
| Weight | 1.6 kg |
| Temperature, continuous | -25 to +80 °C |
| Temperature, short exposure (max. 10 min) | -30 to +110 °C |
Properties and use
The castor can be washed often and suits hot and wet conditions. Stainless steel does not rust, so it keeps its finish. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).
Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 24 hours.
Specifications from the LIV product database, October 2026.
