stainless steel Swivel castor + solid polyamide wheel Ø200 x W50mm for 300kg Prod ID: 41684

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

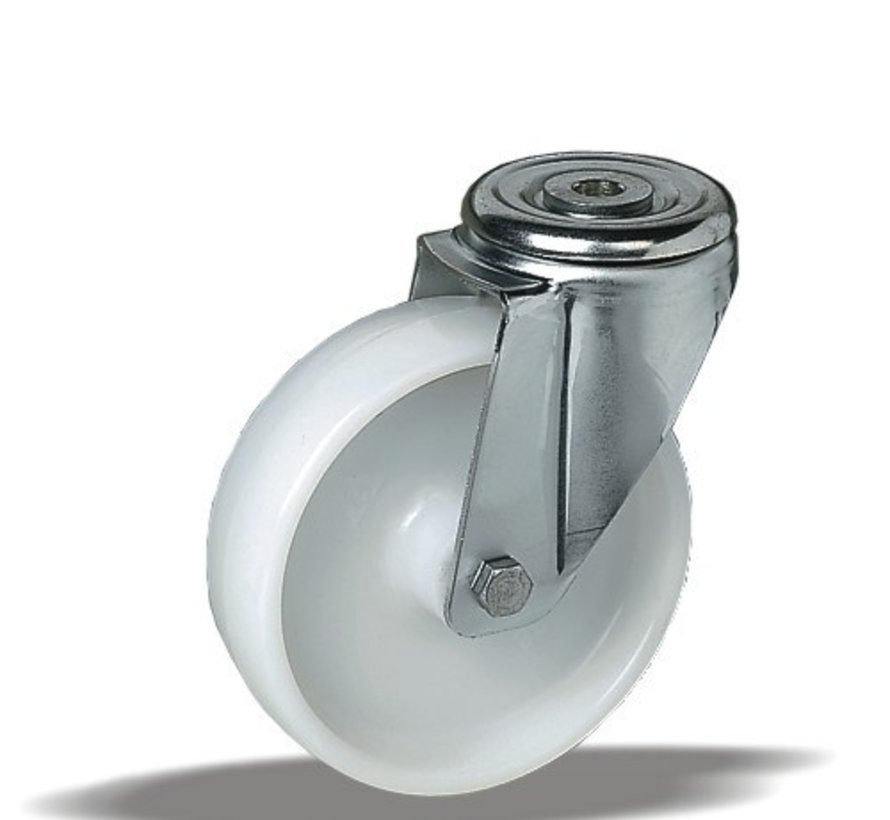

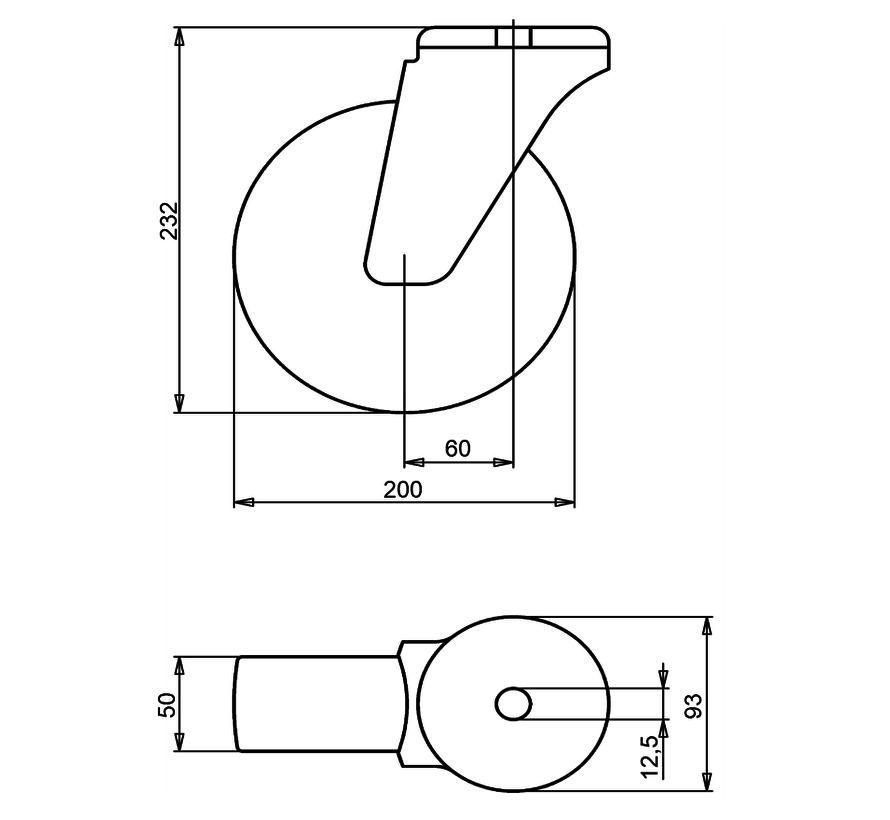

stainless steel Swivel castor with an overall height of 232 mm
Wheel diameter x width: 200 x 50 mm
Top plate with 4 mounting holes of 12,5 mm, mounting hole distance #$% mm and top plate outer dimensions: 93 mm
Wheel with plain bearing and solid polyamide wheel with hardness 70±5 Shore D.

Approved and tested load capacity
Dynamic 300 kg
Static 370 kg

Temperature range:
Continious operation: -25 | +80°C
Short (10 min) exposure: -30 | +110°C

Advantages of this Steamy floor in Swivel castor:
✓ washing alowed
✓ shining
✓ hot and wet conditions

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS stainless steel Swivel castor + solid polyamide wheel Ø200 x W50mm for 300kg Prod ID: 41684

ID 41684: Castor overall height 232 mm | 4 mounting holes with distance #$% mm | Wheel with plain bearing and solid polyamide wheel with hardness 70±5 Shore D | Steamy floor in, frequent washing alowed, always shining, for hot and wet conditions
