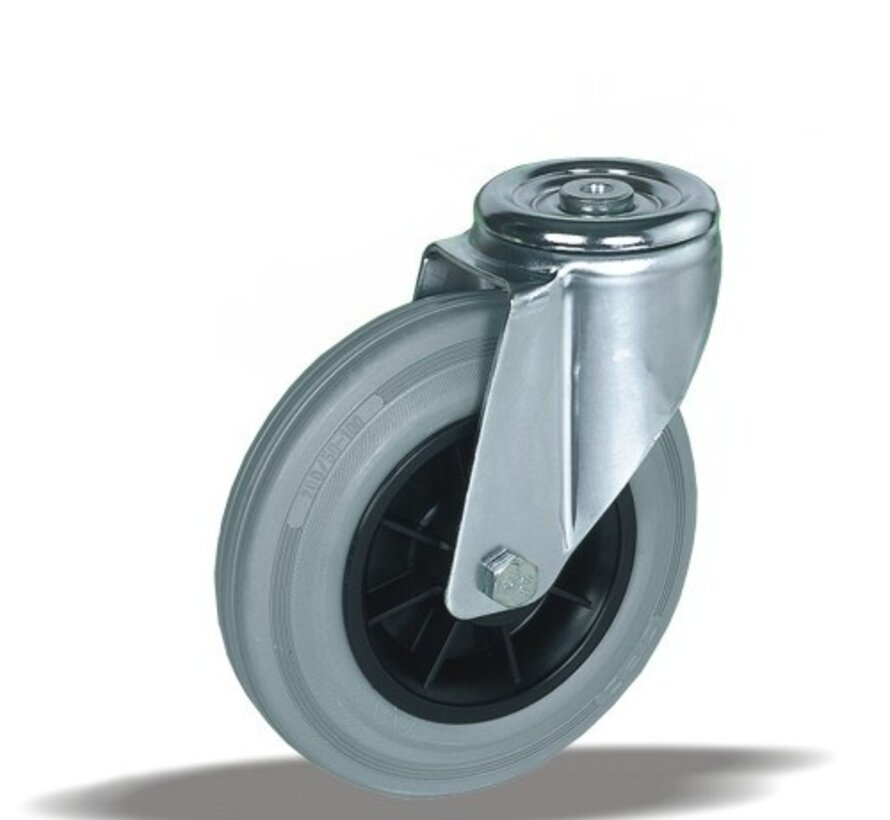

| Type | Stainless steel swivel castor |
|---|---|

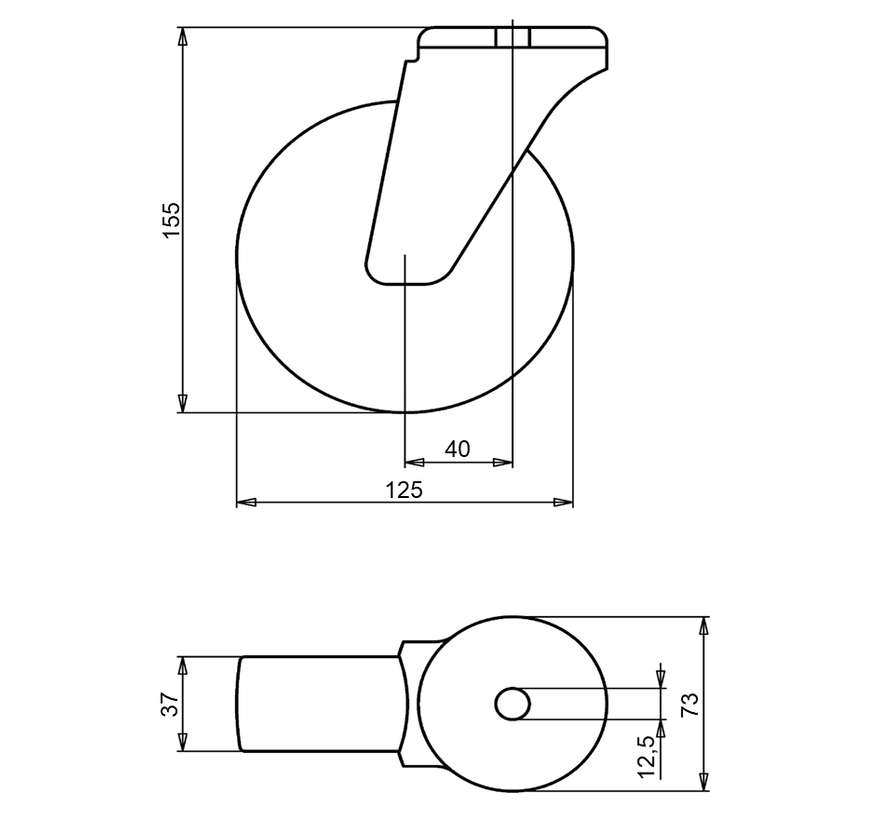

| Wheel diameter | 125 mm |
| Wheel width | 37 mm |
| Tread | grey rubber tread, 83 Shore A |
| Tread colour | grey |
| Wheel centre | polypropylene |
| Bearing | plain bearing |
| Load capacity, dynamic | 130 kg |
| Load capacity, static | 160 kg |
| Fitting | single bolt hole |
| Hole diameter | 12.5 mm |
| Overall height | 155 mm |
| Offset | 40 mm |
| Weight | 1.1 kg |
| Temperature, continuous | -20 to +70 °C |
| Temperature, short exposure (max. 10 min) | -30 to +80 °C |
Tread free of PAH (EU directive 2005/69/EC).
Properties and use
The grey rubber protects the floor. The castor suits wet areas and steam cleaning, and low obstacles pass smoothly. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).
Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 24 hours.
Specifications from the LIV product database, October 2026.
