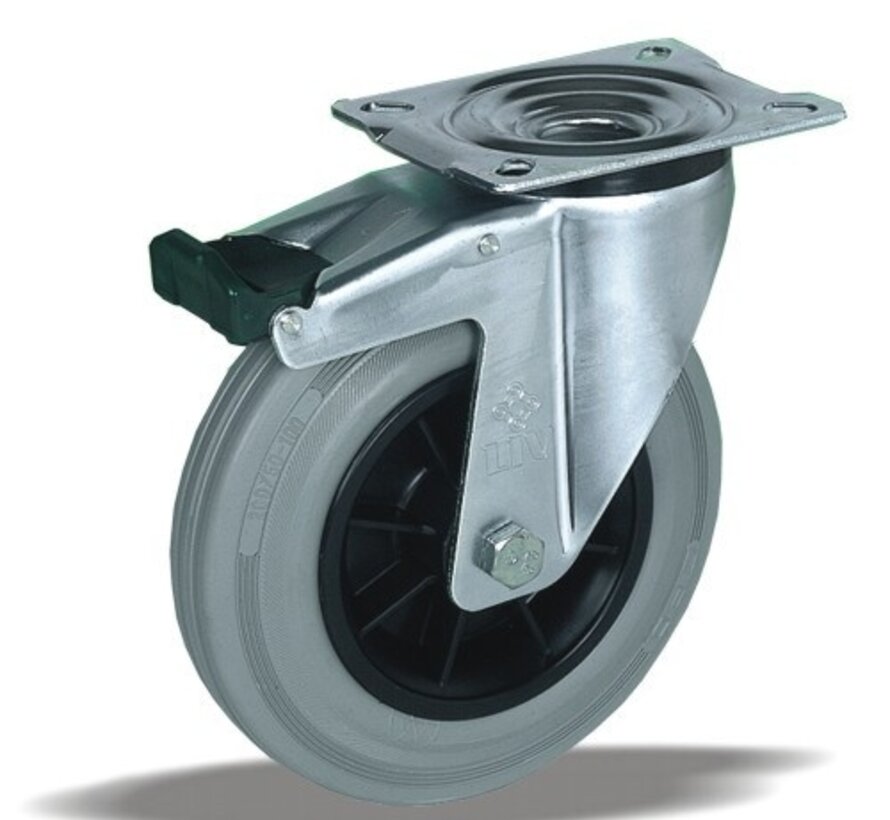

Stainless steel swivel castor with total lock 100 mm, grey rubber, roller bearing, plate 105x85 mm, 80 kg, product code 41514
Stainless steel swivel castor with total lock with a 100 mm wheel, grey rubber tread, on roller bearing. It carries 80 kg dynamic and 100 kg static, mounted on a 105x85 mm top plate with hole distance 80x60 mm. The total lock brakes the rotation of the wheel and the swivel head.
- Looking for a castor or wheel for your application? Contact us.
- Ask us for CAD models in STEP and IGES formats
- Short delivery times for large quantities of castors
- Pressing steel OEM parts is our expertise
You are in our product catalogue. This opens livsystems.eu in a new tab, where we show our factory and the background of the company.
Product description
| Type | Stainless steel swivel castor with total lock |
|---|---|
| Wheel diameter | 100 mm |
| Wheel width | 32 mm |
| Tread | grey rubber tread, 83 Shore A |
| Tread colour | grey |
| Wheel centre | polypropylene |
| Bearing | roller bearing |
| Load capacity, dynamic | 80 kg |
| Load capacity, static | 100 kg |
| Top plate | 105x85 mm |
| Hole distance | 80x60 mm |
| Fixing hole diameter | 9 mm |
| Overall height | 128 mm |
| Offset | 40 mm |
| Brake | total lock (locks wheel and swivel) |
| Weight | 0.87 kg |
| Temperature, continuous | -20 to +70 °C |
| Temperature, short exposure (max. 10 min) | -30 to +80 °C |
Tread free of PAH (EU directive 2005/69/EC).
Properties and use
The grey rubber protects the floor. The castor suits wet areas and steam cleaning, and low obstacles pass smoothly. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).
Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 1 to 2 working days.
Specifications from the LIV product database, October 2026.
Product information
| Product code | 41514 |
|---|---|
| Drawing number | 2-929 ISO |
| EAN | 3838461415142 |
