stainless steel Swivel castor + injection-moulded polyurethane tread Ø125 x W32mm for 200kg Prod ID: 41395

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

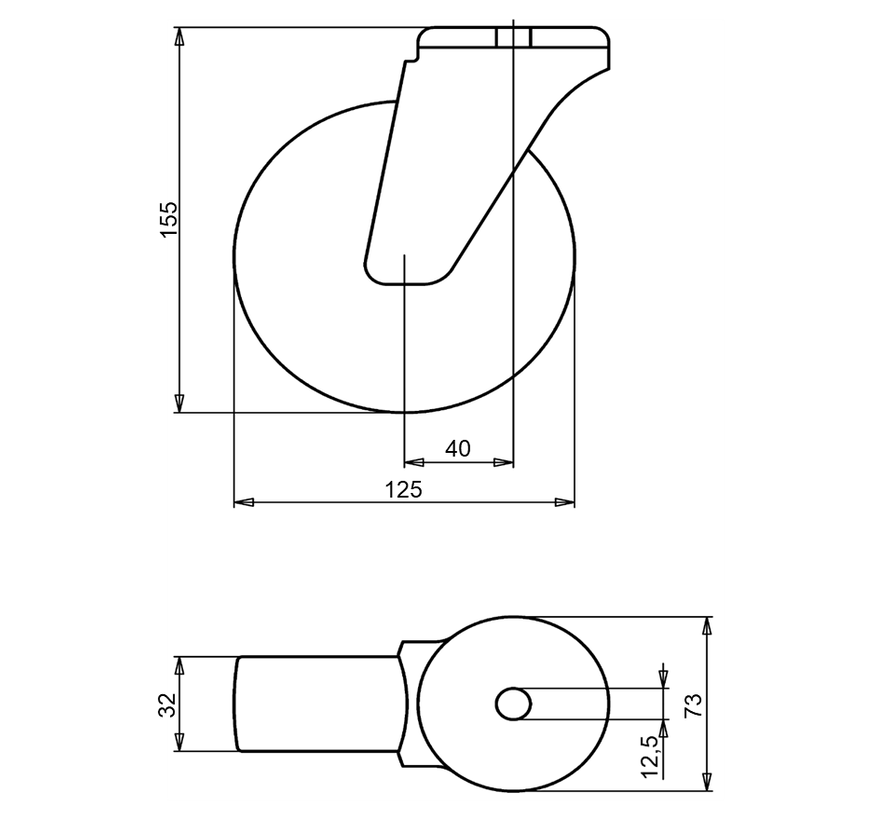

stainless steel Swivel castor with an overall height of 155 mm
Wheel diameter x width: 125 x 32 mm
Top plate with 4 mounting holes of 12,5 mm, mounting hole distance #$% mm and top plate outer dimensions: 73 mm
Wheel with roller bearing and injection-moulded polyurethane tread with hardness 92 ° Shore A on polyamide.

Approved and tested load capacity
Dynamic 200 kg
Static 250 kg

Temperature range:
Continious operation: -25 | +55°C
Short (10 min) exposure: -30 | +55°C

Advantages of this No trail highway drive Swivel castor:
✓ deformation if rarely moved
✓ range of temperatures
✓ resistant

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS stainless steel Swivel castor + injection-moulded polyurethane tread Ø125 x W32mm for 200kg Prod ID: 41395

ID 41395: Castor overall height 155 mm | 4 mounting holes with distance #$% mm | Wheel with roller bearing and injection-moulded polyurethane tread with hardness 92 ° Shore A | No trail highway drive, low deformation if rarely moved, wide range of tempera
