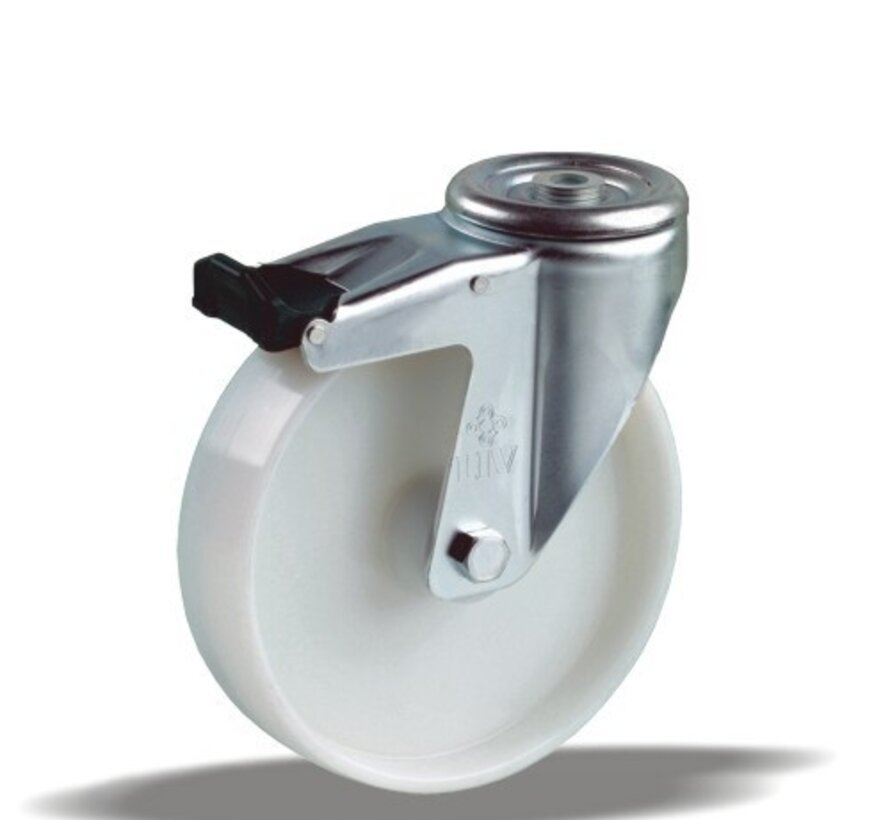

stainless steel Swivel castor with brake + solid polyamide wheel Ø80 x W35mm for 150kg Prod ID: 41334

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

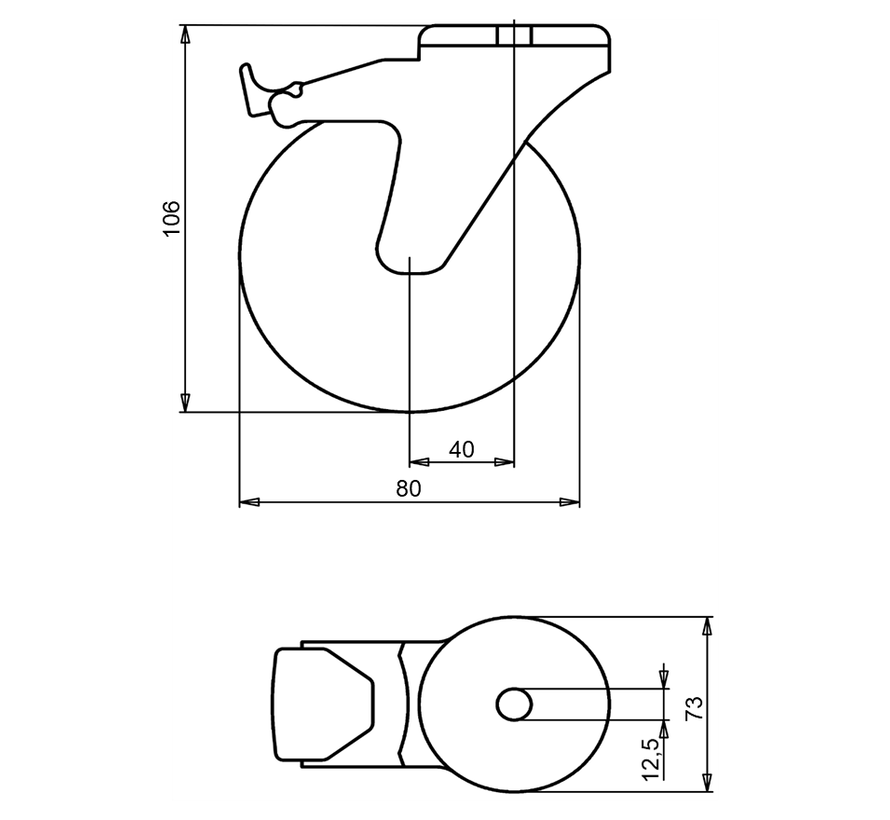

stainless steel Swivel castor with brake with an overall height of 106 mm
Wheel diameter x width: 80 x 35 mm
Top plate with 4 mounting holes of 12,5 mm, mounting hole distance #$% mm and top plate outer dimensions: 73 mm
Wheel with plain bearing and solid polyamide wheel with hardness 70±5 Shore D
the double brake system, brakes the turning of the wheel and the swivel rotation.

Approved and tested load capacity
Dynamic 150 kg
Static 180 kg

Temperature range:
Continious operation: -25 | +80°C
Short (10 min) exposure: -30 | +110°C

Advantages of this Steamy floor in Swivel castor with brake:
✓ washing alowed
✓ shining
✓ hot and wet conditions

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS stainless steel Swivel castor with brake + solid polyamide wheel Ø80 x W35mm for 150kg Prod ID: 41334

ID 41334: Castor overall height 106 mm | 4 mounting holes with distance #$% mm | Wheel with plain bearing and solid polyamide wheel with hardness 70±5 Shore D | The double brake system, brakes the turning of the wheel and the swivel rotation. | Steamy fl
