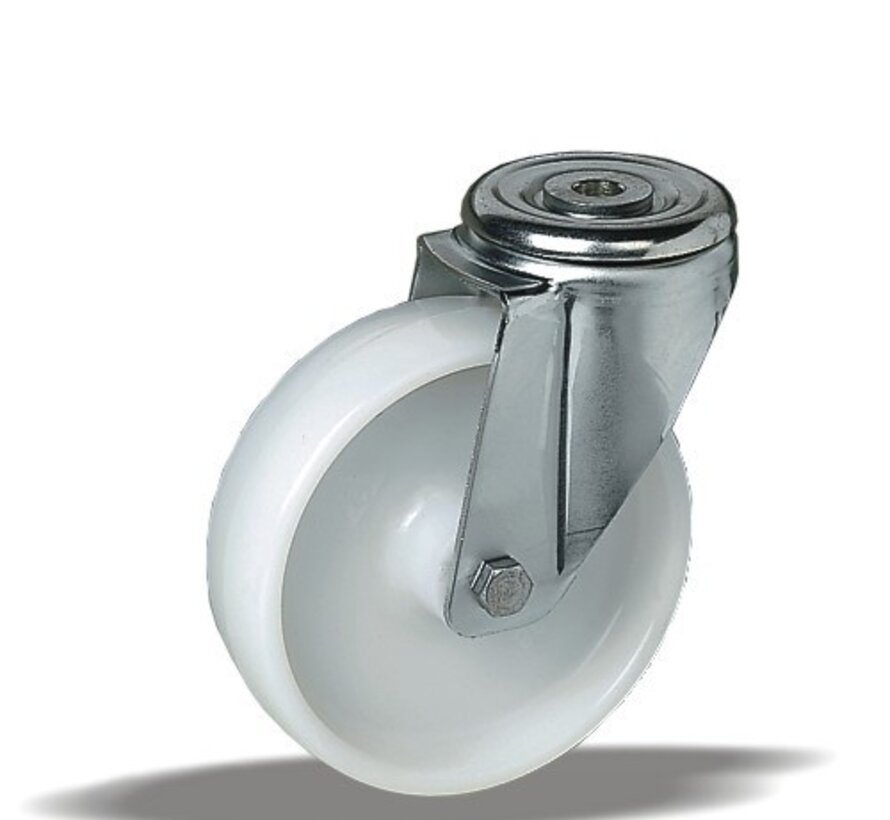

stainless steel Swivel castor + solid polyamide wheel Ø100 x W35mm for 200kg Prod ID: 41315

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

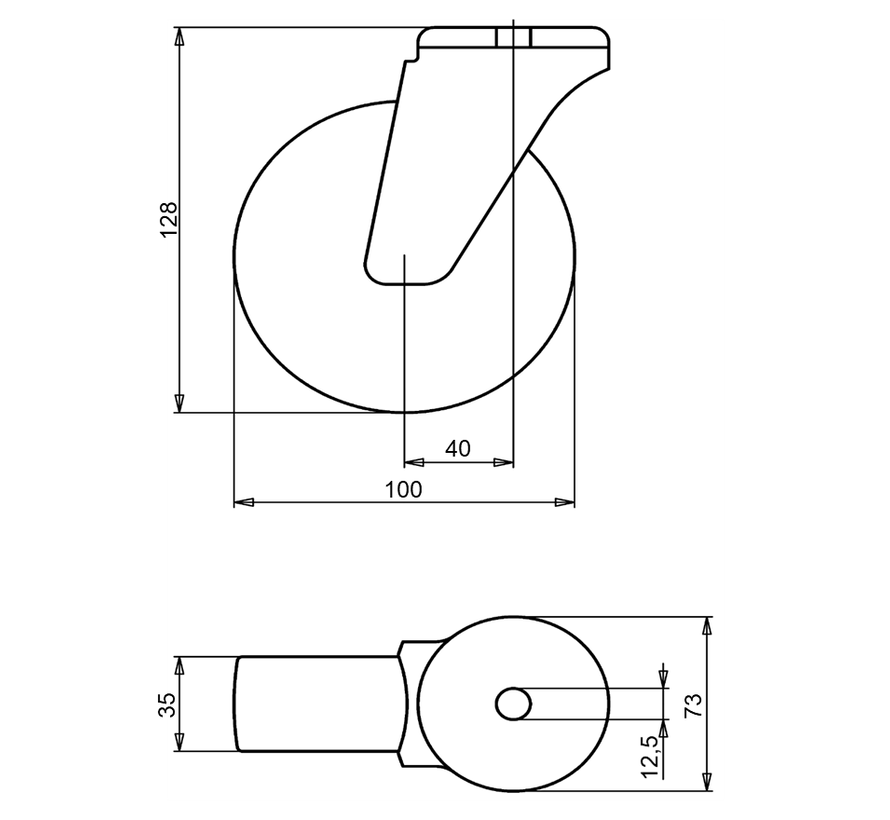

stainless steel Swivel castor with an overall height of 128 mm
Wheel diameter x width: 100 x 35 mm
Top plate with 4 mounting holes of 12,5 mm, mounting hole distance #$% mm and top plate outer dimensions: 73 mm
Wheel with roller bearing and solid polyamide wheel with hardness 70±5 Shore D.

Approved and tested load capacity
Dynamic 200 kg
Static 250 kg

Temperature range:
Continious operation: -25 | +80°C
Short (10 min) exposure: -30 | +110°C

Advantages of this Steamy floor in Swivel castor:
✓ washing alowed
✓ shining
✓ hot and wet conditions

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS stainless steel Swivel castor + solid polyamide wheel Ø100 x W35mm for 200kg Prod ID: 41315

ID 41315: Castor overall height 128 mm | 4 mounting holes with distance #$% mm | Wheel with roller bearing and solid polyamide wheel with hardness 70±5 Shore D | Steamy floor in, frequent washing alowed, always shining, for hot and wet conditions
