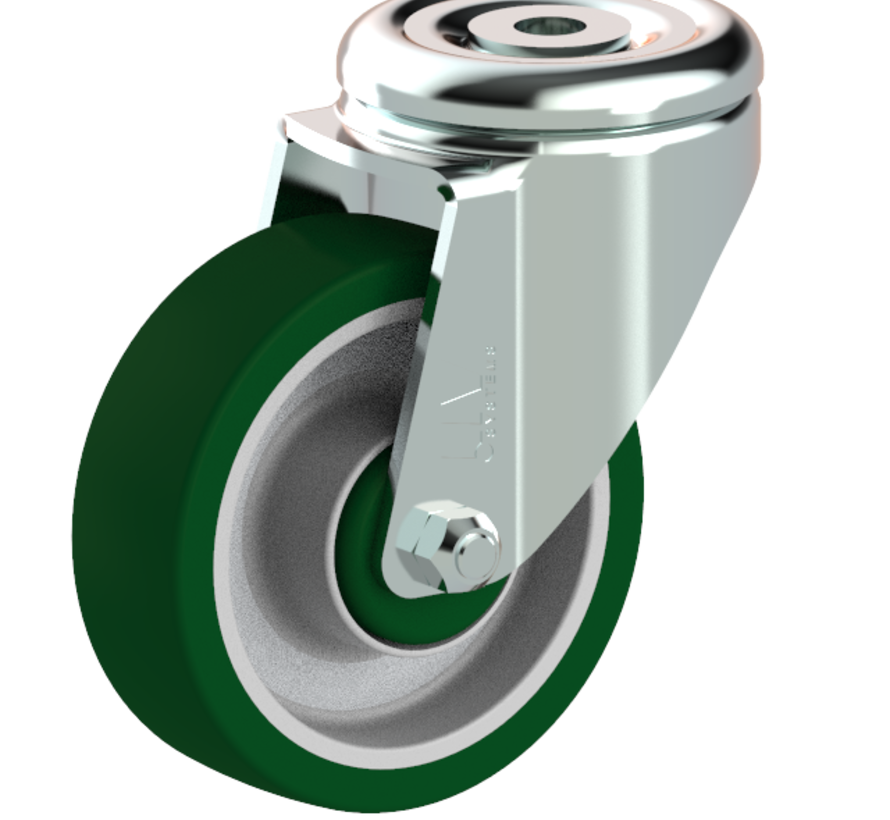

Swivel castor 100 mm, polyurethane, plain bearing, bolt hole 12.5 mm, 150 kg, product code 41163

Swivel castor with a 100 mm wheel, polyurethane tread, on plain bearing. It carries 150 kg dynamic and 180 kg static, fixed with a 12.5 mm bolt hole.

  • Looking for a castor or wheel for your application? Contact us.
  • Ask us for CAD models in STEP and IGES formats
  • Short delivery times for large quantities of castors
  • Pressing steel OEM parts is our expertise
Download PDF See our factory (opens in a new tab)

You are in our product catalogue. This opens livsystems.eu in a new tab, where we show our factory and the background of the company.

Product description

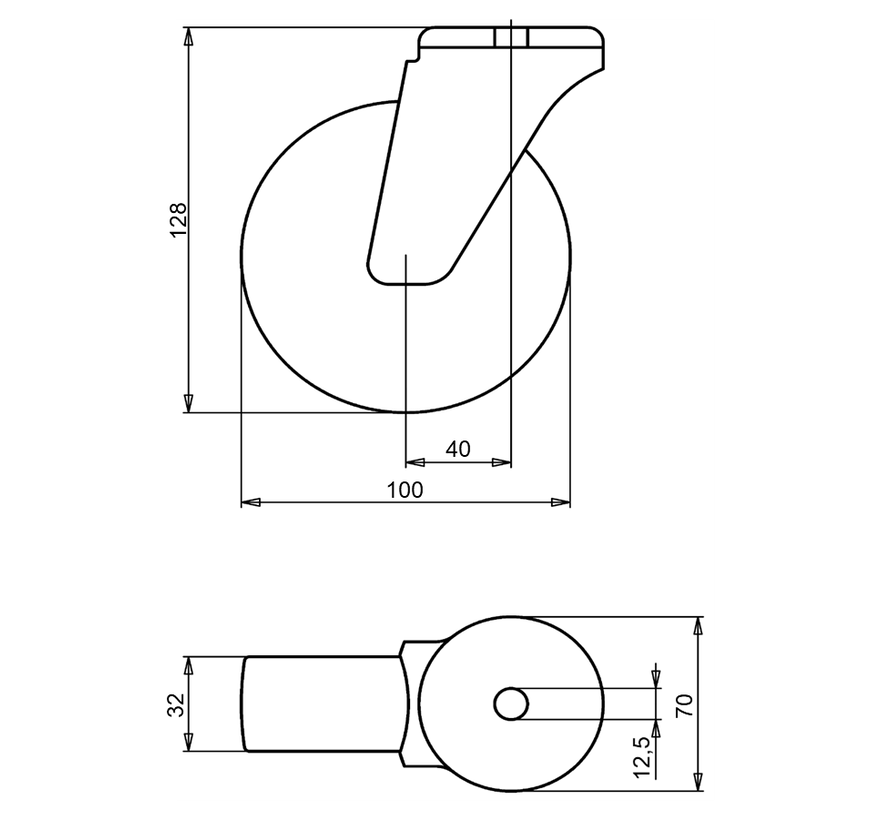

TypeSwivel castor
Wheel diameter100 mm
Wheel width32 mm
Treadpolyurethane tread, 92 Shore A
Tread colourgreen
Wheel centrepolyamide
Bearingplain bearing
Load capacity, dynamic150 kg
Load capacity, static180 kg
Fittingsingle bolt hole
Hole diameter12.5 mm
Overall height128 mm
Offset40 mm
Weight0.83 kg
Temperature, continuous-25 to +55 °C
Temperature, short exposure (max. 10 min)-30 to +55 °C
Top plate size70 mm
Tread materialInjection-moulded polyurethane

Fork zinc electroplated and Cr(VI)-free.

Properties and use

Resists a wide range of chemicals. The polyurethane tread puts little pressure on the floor and the castor starts with low force. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).

Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 1 to 2 working days.

Specifications from the LIV product database, October 2026.
