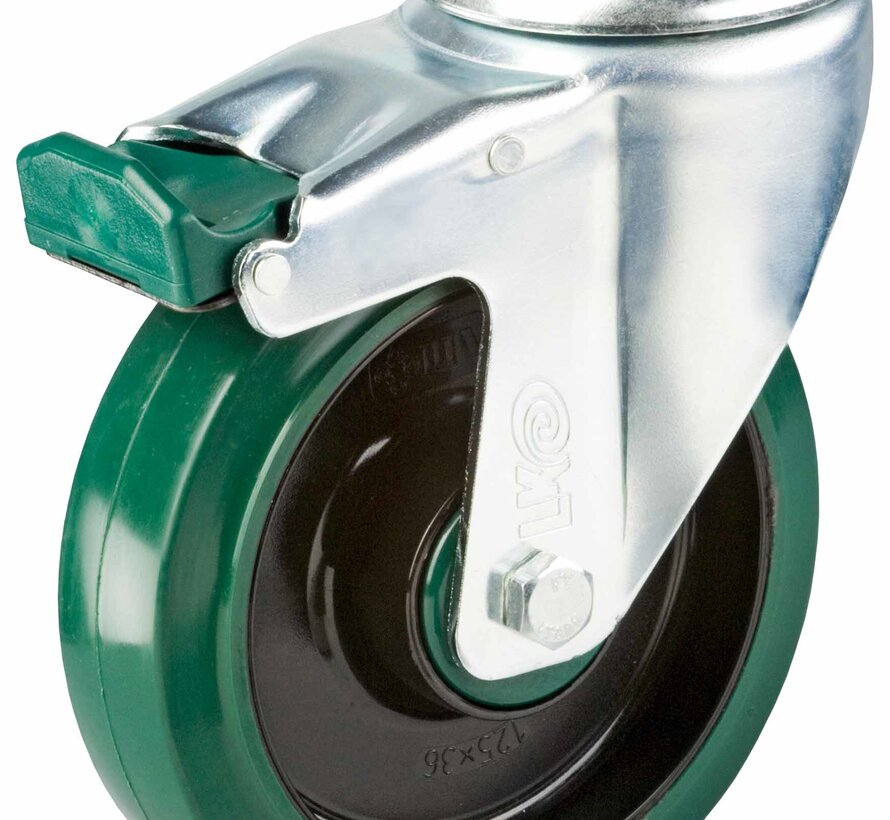

standard Swivel castor with brake + elastic rubber tyre Ø125 x W35mm for 200kg Prod ID: 41084

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

standard Swivel castor with brake with an overall height of 155 mm
Wheel diameter x width: 125 x 35 mm
Top plate with 4 mounting holes of 12,5 mm, mounting hole distance #$% mm and top plate outer dimensions: 70 mm
Wheel with ball bearing and elastic rubber tyre with hardness 70 ° Shore A on polyamide
the double brake system, brakes the turning of the wheel and the swivel rotation.

Approved and tested load capacity
Dynamic 200 kg
Static 250 kg

Temperature range:
Continious operation: -25 | +80°C
Short (10 min) exposure: -30 | +110°C

Advantages of this silent floor motion Swivel castor with brake:
✓ rolling resistance
✓ to surface
✓ barrier passing

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS standard Swivel castor with brake + elastic rubber tyre Ø125 x W35mm for 200kg Prod ID: 41084

ID 41084: Castor overall height 155 mm | 4 mounting holes with distance #$% mm | Wheel with ball bearing and elastic rubber tyre with hardness 70 ° Shore A | The double brake system, brakes the turning of the wheel and the swivel rotation. | silent floor
