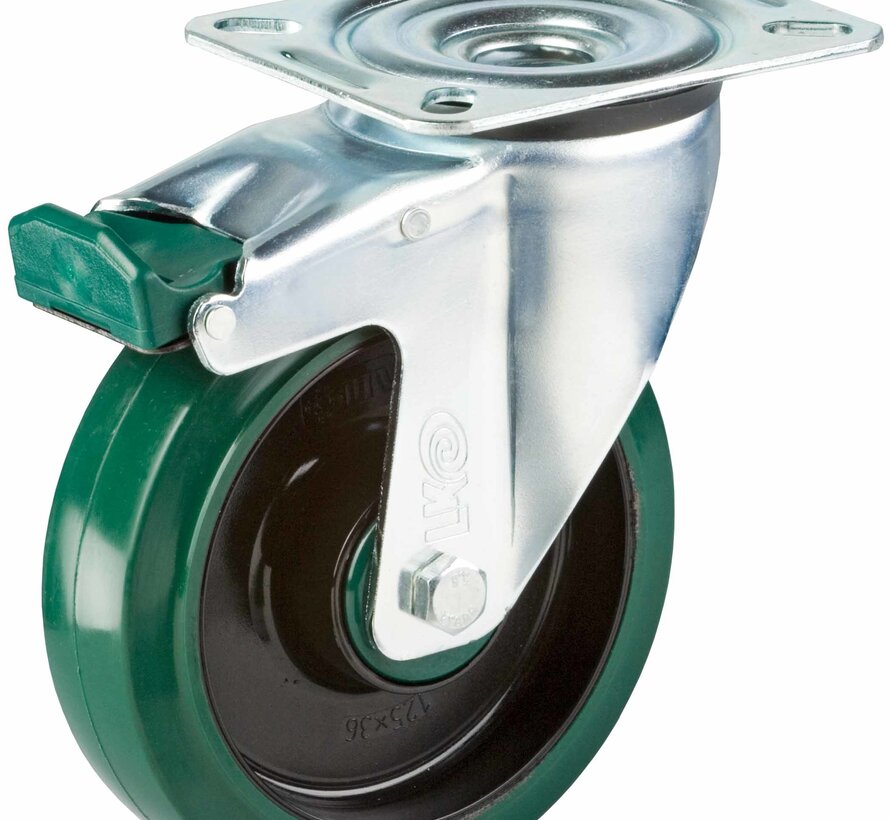

Swivel castor with total lock 125 mm, elastic rubber, ball bearing, plate 105x85 mm, 200 kg, Art. 2-073-25K

Swivel castor with total lock, 125 mm wheel diameter, elastic rubber tyre, running on ball bearing. Rated load is 200 kg dynamic, 250 kg static, mounted on a 105x85 mm top plate with hole distance 80x60 mm. The total lock brakes the rotation of the wheel and the swivel head.

  • Looking for a castor or wheel for your application? Contact us.
  • Ask us for CAD models in STEP and IGES formats
  • Short delivery times for large quantities of castors
  • Pressing steel OEM parts is our expertise
Download PDF See our factory (opens in a new tab)

You are in our product catalogue. This opens livsystems.eu in a new tab, where we show our factory and the background of the company.

Product description

TypeSwivel castor with total lock
Wheel diameter125 mm
Wheel width35 mm
Treadelastic rubber tyre, 70 Shore A
Tread colourgreen
Wheel centrepolyamide
Bearingball bearing
Load capacity, dynamic200 kg
Load capacity, static250 kg
Top plate105x85 mm
Hole distance80x60 mm
Fixing hole diameter9 mm
Overall height155 mm
Offset40 mm
Braketotal lock (locks wheel and swivel)
Weight1.04 kg
Temperature, continuous-25 to +80 °C
Temperature, short exposure (max. 10 min)-30 to +110 °C

Fork zinc electroplated and Cr(VI)-free. Tread free of PAH (EU directive 2005/69/EC).

Properties and use

Rolls with low resistance and is gentle on the floor. Obstacles pass with little effort. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).

Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 1 to 2 working days.

Specifications from the LIV product database, October 2026.
