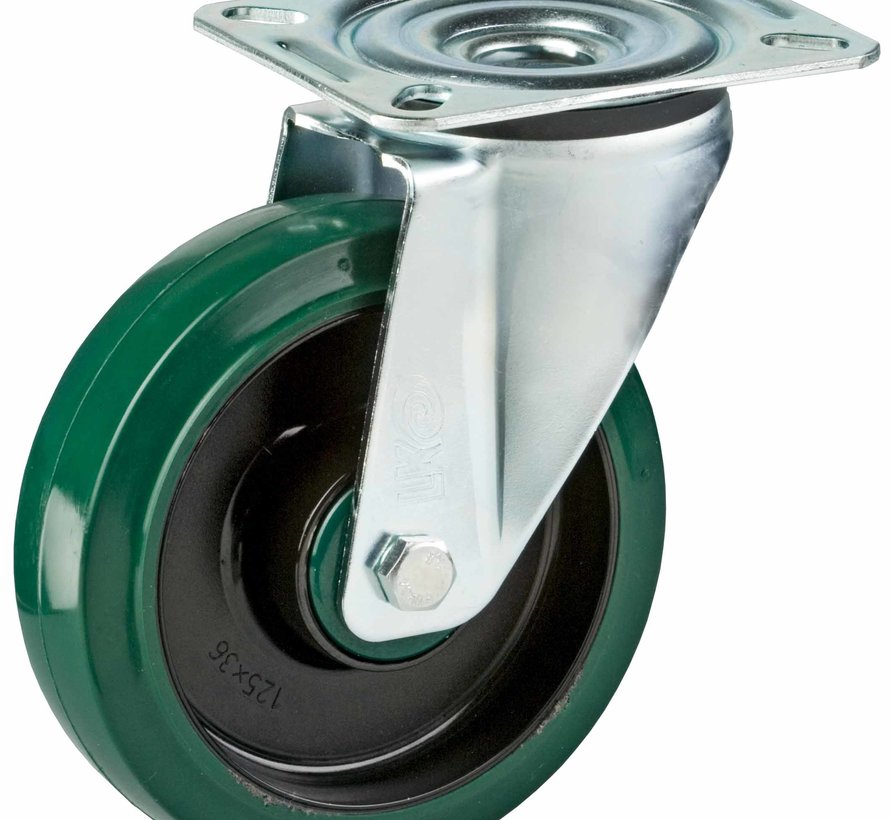

| Type | Swivel castor |
|---|---|
| Wheel diameter | 100 mm |
| Wheel width | 35 mm |
| Tread | elastic rubber tyre, 70 Shore A |
| Tread colour | green |
| Wheel centre | polyamide |
| Bearing | roller bearing |
| Load capacity, dynamic | 150 kg |
| Load capacity, static | 180 kg |
| Top plate | 105x85 mm |
| Hole distance | 80x60 mm |
| Fixing hole diameter | 9 mm |
| Overall height | 128 mm |
| Offset | 40 mm |
| Weight | 0.87 kg |
| Temperature, continuous | -25 to +80 °C |
| Temperature, short exposure (max. 10 min) | -30 to +110 °C |
Fork zinc electroplated and Cr(VI)-free. Tread free of PAH (EU directive 2005/69/EC).
Properties and use
Rolls with low resistance and is gentle on the floor. Obstacles pass with little effort. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).
Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 24 hours.
Specifications from the LIV product database, October 2026.
