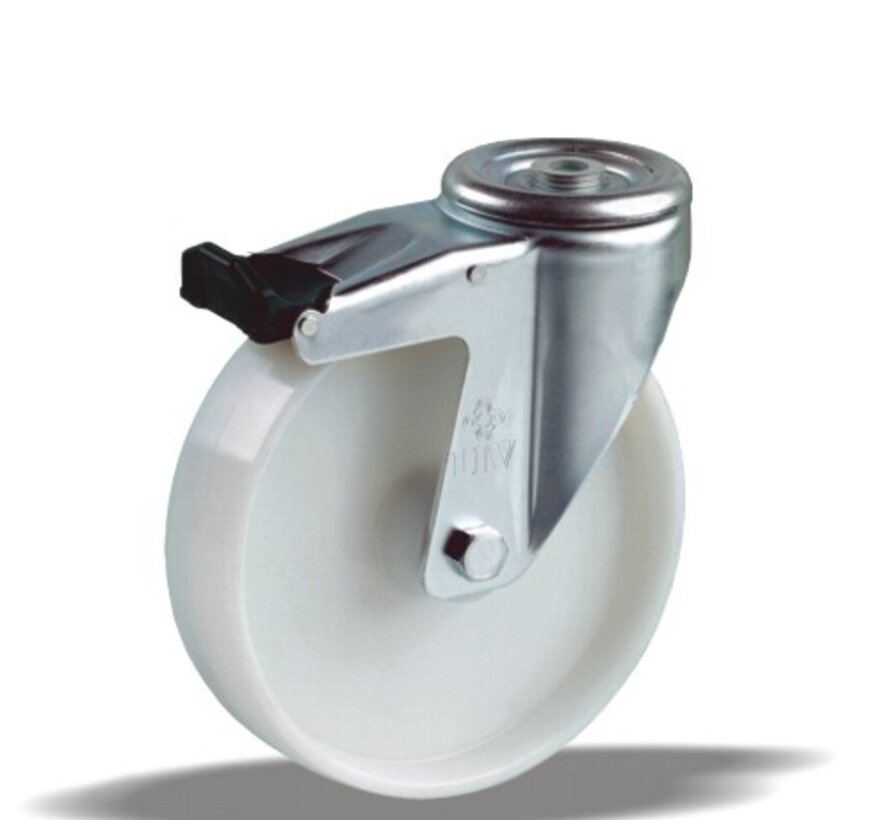

standard Swivel castor with brake + solid polyamide wheel Ø125 x W38mm for 250kg Prod ID: 40963

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

standard Swivel castor with brake with an overall height of 155 mm
Wheel diameter x width: 125 x 38 mm
Top plate with 4 mounting holes of 12,5 mm, mounting hole distance #$% mm and top plate outer dimensions: 70 mm
Wheel with plain bearing and solid polyamide wheel with hardness 70±5 Shore D
the double brake system, brakes the turning of the wheel and the swivel rotation.

Approved and tested load capacity
Dynamic 250 kg
Static 310 kg

Temperature range:
Continious operation: -25 | +80°C
Short (10 min) exposure: -30 | +110°C

Advantages of this High load easy start Swivel castor with brake:
✓ wearout
✓ effort to keep rolling
✓ to turn

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS standard Swivel castor with brake + solid polyamide wheel Ø125 x W38mm for 250kg Prod ID: 40963

ID 40963: Castor overall height 155 mm | 4 mounting holes with distance #$% mm | Wheel with plain bearing and solid polyamide wheel with hardness 70±5 Shore D | The double brake system, brakes the turning of the wheel and the swivel rotation. | High load
